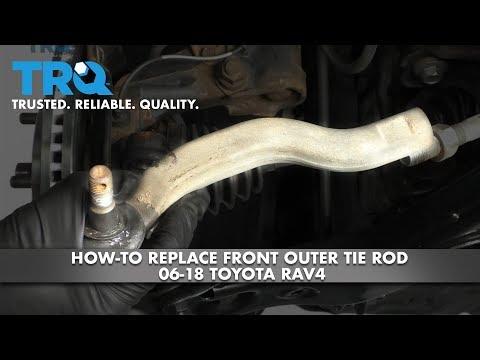

🔧 RAV4 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores safe steering and fixes looseness/clunking, but it can change wheel alignment (toe), so you’ll want an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0–2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your A4? No—support your RAV4 on jack stands, never the jack alone.
• 🧤 Wear safety glasses when separating the joint; parts can pop loose suddenly.
• 🔥 If you use a pickle fork, it can damage the boot; that’s OK since you’re replacing the tie rod end.
• 📏 This job can affect alignment; drive carefully to the alignment shop afterward.
• 🔋 Battery disconnect is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" breaker bar
• Torque wrench (10–150 ft-lbs range)
• 19mm socket
• 22mm open-end wrench
• Needle-nose pliers
• Diagonal cutters
• Hammer (16–24 oz)
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in P, and chock the rear wheels.
• Turn the steering wheel so the tie rod end you’re working on is easy to reach.
• Spray penetrating oil on the jam nut threads and the tie rod end stud nut.
• Tip: Replacing in pairs helps even steering feel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to loosen the front wheel lug nuts 1/2 turn (do not remove yet).

Step 2: Lift and support the front corner

• Use a floor jack to lift at the proper front jacking point.
• Set the vehicle on jack stands and keep the wheel chocks in place.

Step 3: Remove the wheel

• Use a 21mm socket to remove the lug nuts and remove the wheel.

Step 4: Mark your starting point (helps keep toe close)

• Use a paint marker to mark the position of the jam nut on the inner tie rod threads.
• Use a tape measure to measure from the tie rod end housing to a fixed point on the inner rod (write it down).
• Tip: This helps you drive to the alignment shop.

Step 5: Loosen the jam nut

• Hold the inner tie rod section as needed and use a 22mm open-end wrench to loosen the jam nut (do not move it far).

Step 6: Remove the cotter pin and loosen the castle nut

• Use needle-nose pliers to straighten the cotter pin legs.
• Use diagonal cutters and needle-nose pliers to pull the cotter pin out.
• Use a 19mm socket to remove the tie rod end castle nut.

Step 7: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) on the joint and tighten it until the stud pops free.
• If it’s stuck, use a hammer (16–24 oz) to strike the side of the knuckle near the stud (not the threads) while the puller is under tension.

Step 8: Remove the old tie rod end (count turns)

• Spin the tie rod end off by hand, counting the exact number of turns until it comes off (write the number down).

Step 9: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads.
• Thread the new tie rod end on the same number of turns you counted.
• Insert the stud into the knuckle.

Step 10: Torque the castle nut and install a new cotter pin

• Use a 19mm socket and torque wrench to tighten the castle nut: Torque to 67 Nm (49 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten slightly more until it aligns (do not loosen to align).
• Install a new cotter pin and bend the legs over using needle-nose pliers.

Step 11: Tighten the jam nut

• Use a 22mm open-end wrench to snug the jam nut against the tie rod end.
• Finish with a torque wrench: Torque to 74 Nm (55 ft-lbs).

Step 12: Reinstall the wheel

• Install the wheel and hand-thread the lug nuts.
• Lower the vehicle with the floor jack, then torque the lug nuts in a star pattern using a 21mm socket and torque wrench: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock; listen for clunks and confirm smooth movement.
• Road test at low speed first; confirm the steering wheel is close to centered.
• Get a front wheel alignment as soon as possible (recommended immediately).
• Recheck the castle nut/cotter pin visually after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200–$450 (parts + labor + alignment)

DIY Cost: $30–$120 (parts only, per side)

You Save: $170–$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
