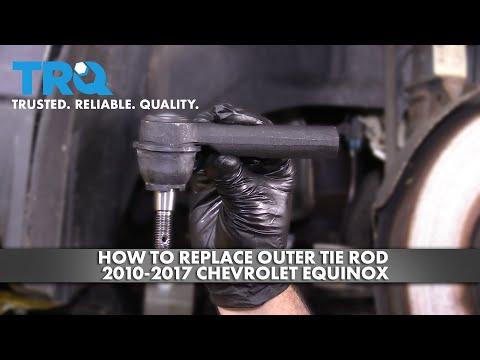

🔧 Equinox - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores safe steering and helps prevent uneven tire wear, but you’ll need an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the Equinox on jack stands; never rely on a jack.
• ⚠️ Keep fingers clear when using a puller/pickle fork; parts can pop loose suddenly.
• ⚠️ Do not hammer on the steering knuckle directly; it can damage the joint/knuckle.
• ⚠️ If you remove a cotter pin, always install a new one.
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Torque wrench 3/8" (10-100 ft-lbs range)
• Torque wrench 1/2" (50-250 ft-lbs range)
• Metric socket set 10mm-24mm (3/8" drive)
• Metric combination wrench set 10mm-24mm
• Pliers
• Side cutters
• Pickle fork set (specialty)
• Tie rod end puller (specialty)
• Wire brush
• Penetrating oil
• Paint marker
• Tape measure
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin kit - Qty: 1
• Thread locker (medium strength) - Qty: 1

---

📋 Before You Begin

• 🧱 Park on level ground, set the parking brake, and chock the rear wheels.
• 🛞 Slightly loosen the front wheel lug nuts before lifting the Equinox.
• 🖊️ Plan to preserve alignment as best as possible: mark the jam nut position and count turns during removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a breaker bar 1/2" and a socket from your metric socket set 10mm-24mm to loosen the lug nuts 1/2 turn.
• Use a floor jack (rated 3-ton minimum) to lift at the front jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) and keep the floor jack lightly supporting as a backup.
• Remove the wheel using the metric socket set 10mm-24mm.

Step 2: Locate and clean the tie rod end hardware

• Find the outer tie rod end at the steering knuckle (behind the brake rotor area).
• Use a wire brush to clean threads at the jam nut and the stud nut area.
• Spray penetrating oil on the jam nut and the tie-rod stud nut threads.

Step 3: Mark the current position (to keep toe close)

• Use a paint marker to mark the jam nut position relative to the inner tie rod threads.
• Use a tape measure to measure from a fixed point (example: center of the grease fitting or tie-rod end body) to the jam nut, and write it down.
• This helps you drive to alignment safely.

Step 4: Remove the cotter pin (if equipped)

• Use pliers or side cutters to straighten and remove the cotter pin from the tie-rod stud nut.
• If the cotter pin breaks, remove all pieces with pliers.

Step 5: Loosen (but do not remove) the stud nut

• Use the correctly fitting socket from your metric socket set 10mm-24mm to loosen the tie-rod stud nut a few turns, but leave it on.
• Leaving it on prevents sudden separation.

Step 6: Separate the tie rod end from the steering knuckle

• Preferred method: use a tie rod end puller (specialty) to press the stud out of the knuckle.
• Alternate method: use a pickle fork set (specialty) between the knuckle and tie rod end, then drive it in carefully (this can damage the boot on the old part).
• Once it “pops” loose, remove the stud nut using the metric socket set 10mm-24mm.

Step 7: Break the jam nut loose

• Hold the inner tie rod area with a wrench from the metric combination wrench set 10mm-24mm if needed.
• Use the correct-size wrench from the metric combination wrench set 10mm-24mm to loosen the jam nut (turn it counterclockwise).
• Back the jam nut off a few turns, but leave it on the threads.

Step 8: Remove the old outer tie rod end (count turns)

• Spin the tie rod end off by hand, counting the exact number of turns until it comes off.
• Write the number down.

Step 9: Install the new outer tie rod end

• Thread the new tie rod end on by hand for the exact same number of turns you counted.
• Set the tie rod end so the stud drops into the steering knuckle cleanly (adjust by rotating the tie rod end body slightly as needed).
• If the new part includes a grease fitting, install it using a wrench from the metric combination wrench set 10mm-24mm (snug only).

Step 10: Tighten the stud nut and install a new cotter pin

• Install the stud nut by hand first to avoid cross-threading.
• Use a torque wrench 3/8" (10-100 ft-lbs range) with the correct socket to tighten the stud nut to Torque to 37 ft-lbs (50 Nm).
• If the cotter pin hole is not aligned after torque, tighten the nut slightly more (never loosen to align).
• Install a new cotter pin using pliers and bend the ends over securely.

Step 11: Tighten the jam nut

• Hold the tie rod end with a wrench from the metric combination wrench set 10mm-24mm so it doesn’t rotate.
• Tighten the jam nut using a wrench from the metric combination wrench set 10mm-24mm to Torque to 55 ft-lbs (75 Nm).
• If you choose to use thread locker, apply thread locker (medium strength) to the threads before final jam-nut tightening.

Step 12: Reinstall the wheel and lower the vehicle

• Reinstall the wheel and hand-tighten lug nuts using the metric socket set 10mm-24mm.
• Lower the Equinox using the floor jack (rated 3-ton minimum) and remove the jack stands (rated 3-ton minimum).
• Use a torque wrench 1/2" (50-250 ft-lbs range) to tighten lug nuts in a star pattern to Torque to 100 ft-lbs (135 Nm).

---

✅ After Repair

• 🧭 Get a front-end alignment as soon as possible (tie rod changes affect toe).
• 🛣️ Do a short test drive at low speed. Confirm the steering wheel is close to centered and there’s no clunking over bumps.
• 🔍 Recheck the cotter pin is fully seated and the jam nut is tight.
• 🛞 Watch for rapid tire scrub/noise; stop driving and align if it feels “dart-y.”

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor + alignment)

DIY Cost: $35-$120 (parts only)

You Save: $185-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
