🔧 Tie Rod End - Replacement

Replacing the outer tie rod end restores steering feel and removes looseness at the front wheel. This repair changes toe alignment, so a professional alignment is required right after the job.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Support the vehicle securely with jack stands before removing the wheel.
• Keep clear of the steering knuckle while separating the tie rod end.
• Do not reuse the cotter pin.
• Do not drive the vehicle for long distances before alignment.
• No battery disconnect is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 21mm wrench
• 18mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Tie rod end puller (specialty)
• Needle-nose pliers
• Paint marker
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Castle nut - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the wheel lug nuts slightly before lifting the vehicle.
• Mark the old tie rod end position so the new one goes on close to the same length.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

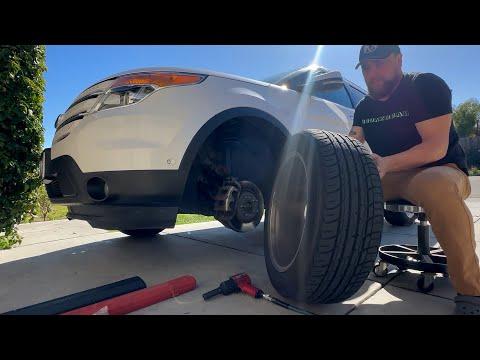

Step 1: Raise the vehicle and remove the wheel

• Use a floor jack to lift the front corner of the vehicle.
• Place a jack stand under the proper support point.
• Remove the lug nuts with a 21mm socket and take off the wheel.

Step 2: Mark the current tie rod length

• Use a paint marker to mark the position of the old tie rod end on the inner tie rod.
• Count the turns needed to remove it later.
• This helps keep the alignment close enough to drive.

Step 3: Remove the cotter pin and nut

• Use needle-nose pliers to remove the cotter pin from the stud.
• Use an 18mm socket or 21mm wrench to remove the castle nut.
• Leave the nut on a few threads if the stud is tight.

Step 4: Separate the tie rod end

• Use a tie rod end puller (specialty) to press the stud out of the steering knuckle.
• Once it pops free, remove the nut and pull the joint away.
• Do not hit the stud threads directly.

Step 5: Remove the old tie rod end

• Use a 21mm wrench to hold the inner tie rod if needed.
• Spin the old tie rod end off by hand.
• Count the turns and note them for installation.

Step 6: Install the new tie rod end

• Thread the new outer tie rod end on the same number of turns as removal.
• Insert the stud into the steering knuckle.
• Install the new castle nut by hand first.
• Torque the castle nut to 55 Nm (41 ft-lbs).

Step 7: Install the cotter pin

• Use needle-nose pliers to insert a new cotter pin through the stud and nut.
• Bend the ends over to lock it in place.
• If the slots do not line up, tighten slightly until they do.

Step 8: Reinstall the wheel

• Put the wheel back on and snug the lug nuts by hand.
• Lower the vehicle to the ground.
• Use a torque wrench and 21mm socket to tighten the lug nuts.
• Torque the lug nuts to 204 Nm (150 ft-lbs).

Step 9: Check your work

• Turn the steering wheel left and right to make sure nothing binds.
• Drive slowly and confirm the steering wheel is close to centered.
• Schedule a professional alignment right away.

---

✅ After Repair

• Get a front-end alignment as soon as possible.
• Recheck for looseness or noises after a short test drive.
• Make sure the steering wheel is centered.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $175-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
