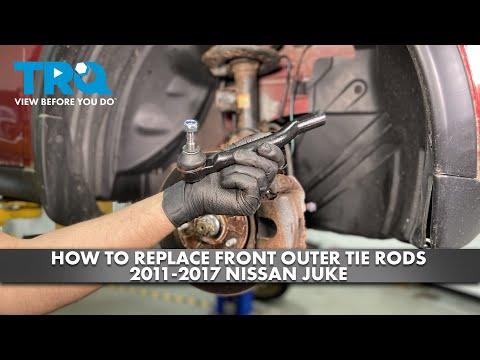

🔧 Juke - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores tight steering and prevents uneven tire wear when the joint is loose or the boot is torn.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Juke on jack stands—never work under a vehicle held only by a jack.
• 🧤 Wear safety glasses when removing cotter pins and using a separator.
• 🧯 Keep hands clear of pinch points while turning the steering knuckle.
• 🔧 You will need a professional wheel alignment after this job to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8" (10–100 Nm range)
• Lug nut socket (size as equipped, commonly 21mm)
• Ratchet 3/8"
• Open-end wrench set (17mm–22mm)
• Socket set (17mm–22mm)
• Pliers
• Pick tool
• Tie rod end puller (specialty)
• Tape measure (metric)
• Paint marker
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (new) - Qty: 1
• Jam nut (if not reusable / not included) - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Loosen the front wheel lug nuts 1/2 turn using a breaker bar and lug nut socket before lifting.
• Tip: Spray penetrating oil 10 minutes early.
• Assumption: Fastener sizes can vary by wheel/aftermarket parts; use the matching wrench/socket that fits snugly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Lift the front corner using a floor jack at the proper jacking point.
• Set the vehicle down onto jack stands and lightly shake the vehicle to confirm it’s stable.
• Remove the lug nuts using a ratchet and lug nut socket, then remove the wheel.

Step 2: Locate the outer tie rod end and mark your baseline

• Find the outer tie rod end at the back of the wheel area; it links the steering knuckle to the inner tie rod.
• Clean the threads near the jam nut using a wire brush.
• Mark the jam nut and inner tie rod with a line using a paint marker.
• Measure from the tie rod end to a fixed point (like the jam nut face) using a tape measure (metric) and write it down. This helps keep toe (wheel pointing angle) close enough to drive to alignment.

Step 3: Loosen the jam nut

• Hold the inner tie rod with an open-end wrench (if it has flats), and loosen the jam nut with another open-end wrench.
• Only crack it loose 1–2 turns. Do not fully remove it yet.

Step 4: Remove the cotter pin (if equipped)

• Straighten the cotter pin legs using pliers.
• Pull the cotter pin out using pliers (use a pick tool if it’s stuck).
• Discard the cotter pin. Always install a new one.

Step 5: Remove the tie rod end nut from the knuckle

• Remove the nut from the tie rod stud using a correctly sized socket and ratchet.
• If the stud spins, apply upward pressure on the tie rod end by hand while turning the nut, or use an open-end wrench on the stud flats (if provided).

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud “pops” free.
• A tie rod end puller is a tool that pushes the stud out of the tapered hole without hammering the knuckle.

Step 7: Remove the old tie rod end from the inner tie rod

• Spin the tie rod end off by turning it counterclockwise by hand.
• Count the exact number of turns as you remove it (example: 17.5 turns). Write it down.
• Tip: Turn-count is your best alignment baseline.

Step 8: Install the new tie rod end

• Thread the new tie rod end on clockwise the same number of turns you counted using your hands.
• Align the tie rod end stud with the steering knuckle hole.
• Install the new nut by hand first, then snug it using a socket and ratchet.
• Torque: Tighten the tie rod end nut to the Nissan spec for your Juke. If you do not have the OEM spec, do not guess—use a repair manual/spec source or a shop for final torque.
• Install a new cotter pin using pliers once the castellations align with the hole (tighten further to align; do not loosen to align).

Step 9: Tighten the jam nut

• Hold the tie rod end body with an open-end wrench and tighten the jam nut against it using another open-end wrench.
• Torque: Tighten the jam nut to the Nissan spec for your Juke (avoid “guess-tight”).

Step 10: Reinstall the wheel and lower the vehicle

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle from the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench to Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock while parked. Listen for clunks.
• Road test at low speed first. Confirm the steering wheel is close to centered and the car tracks straight.
• Get a 4-wheel alignment as soon as possible (same day is best) to prevent rapid tire wear.
• Recheck the cotter pin is fully bent over and secure after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,500-₹10,000 (parts + labor + alignment, typical for Panipat area)

DIY Cost: ₹1,500-₹5,000 (parts only; alignment still recommended)

You Save: ₹2,000-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour locally. This repair takes a shop approximately 1.0-1.5 hours plus alignment time.

---
