🔧 Tahoe - Outer Tie Rod End Replacement

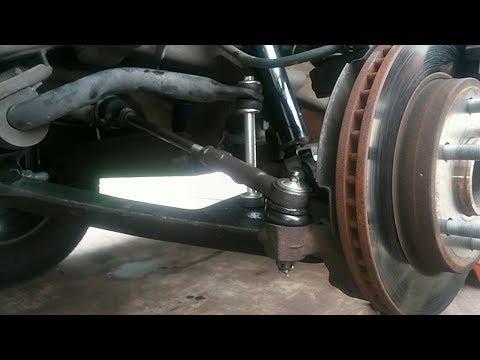

The outer tie rod end connects your steering rack to the steering knuckle. Replacing a worn tie rod end restores safe steering and helps prevent uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Tahoe with jack stands before working underneath.
• ⚠️ Keep hands clear when separating the tie rod end from the knuckle.
• ⚠️ After replacement, get a professional alignment ASAP to prevent tire wear.
• ⚠️ If a cotter pin is used, always install a new one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar (1/2")
• Torque wrench (30-250 ft-lbs)
• 21mm socket
• Needle-nose pliers
• Side cutters
• Paint marker
• Tape measure
• Adjustable wrench (12")
• 18mm socket
• Tie rod end puller (specialty)
• Penetrating oil
• Grease gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Chassis grease (if tie rod end has grease fitting) - Qty: 1

---

📋 Before You Begin

• Park on level ground, center the steering wheel, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Loosen the front wheel lug nuts slightly with a 21mm socket and breaker bar before lifting.
• Spray the tie rod jam nut and tie rod end nut with penetrating oil and let it soak a few minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner using a floor jack (rated 3-ton minimum).
• Set the frame securely on jack stands (rated 3-ton minimum).
• Remove the wheel using a 21mm socket.

Step 2: Mark the current adjustment

• Use a paint marker to mark the position of the jam nut on the inner tie rod threads.
• Measure from a fixed point (example: the end of the inner tie rod) to the center of the tie rod stud using a tape measure, and write it down. This helps keep alignment close.

Step 3: Remove the cotter pin (if equipped)

• Straighten and remove the cotter pin using needle-nose pliers and side cutters.

Step 4: Remove the tie rod end nut from the steering knuckle

• Remove the nut using an 18mm socket.
• If the stud spins, apply upward pressure to the tie rod end while loosening with the 18mm socket.

Step 5: Separate the tie rod end from the steering knuckle

• Install and tighten a tie rod end puller (specialty) until the stud pops free.
• A tie rod puller is a clamp-style tool that presses the stud out without damaging the boot.

Step 6: Loosen the jam nut

• Hold the inner tie rod with an adjustable wrench (12") so it doesn’t twist.
• Loosen the jam nut using an adjustable wrench (12").

Step 7: Remove the outer tie rod end

• Unscrew the outer tie rod end from the inner tie rod while counting the turns (example: “17 turns”) so you can install the new one the same amount.
• Compare the old and new parts to confirm the length and stud match before installing.

Step 8: Install the new outer tie rod end

• Screw the new tie rod end on the same number of turns you counted, or align it to your paint mark/measurement.
• Snug the jam nut by hand for now.

Step 9: Install tie rod stud into the steering knuckle

• Seat the stud into the knuckle by hand.
• Install the new nut and tighten with an 18mm socket and torque wrench (30-250 ft-lbs).
• Torque to 60 Nm (44 ft-lbs), then continue tightening just enough to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers, then bend the ends over.

Step 10: Tighten the jam nut

• Hold the inner tie rod with an adjustable wrench (12").
• Tighten the jam nut using an adjustable wrench (12").
• Torque to 75 Nm (55 ft-lbs)

Step 11: Grease the tie rod end (if applicable)

• If your new tie rod end has a grease fitting, add grease using a grease gun until the boot just starts to swell.
• Don’t overfill or the boot can pop.

Step 12: Reinstall the wheel and lower the Tahoe

• Reinstall the wheel using a 21mm socket.
• Lower the Tahoe from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (30-250 ft-lbs).
• Torque to 190 Nm (140 ft-lbs)

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Road test at low speed first. Verify the steering wheel is close to centered and there are no clunks.
• Schedule a front-end alignment as soon as possible (same day if you can).
• Recheck the tie rod nut and jam nut area visually for movement after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + basic alignment check)

DIY Cost: $35-$120 (parts only)

You Save: $145-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
