🔧 Corolla - Outer Tie Rod End Replacement

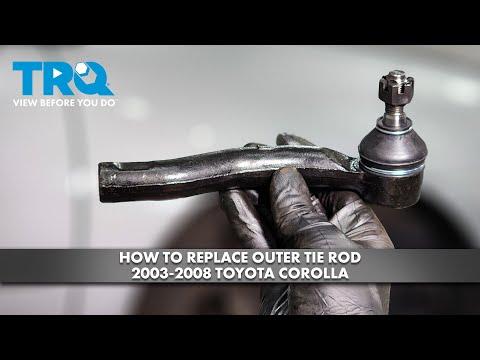

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores tight steering and prevents uneven tire wear, but you’ll need an alignment afterward because toe (front wheel angle) will change.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Corolla with jack stands; never rely on a jack alone.
• 🛑 Chock the rear wheels and keep the car on level ground.
• 🛑 Wear eye protection when separating the tie rod end (rust can pop loose).
• 🛑 Plan for a professional alignment after replacement to avoid tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs)
• Needle-nose pliers
• 17mm socket
• 17mm combination wrench
• Adjustable wrench (10")
• Tie rod end puller (specialty)
• Wire brush
• Paint marker
• Penetrating oil
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• 🧰 Loosen the front wheel lug nuts 1/2 turn before lifting the car.
• 🧰 Spray penetrating oil on the tie rod end jam nut and the tie rod end stud nut.
• 🧰 Take a quick picture of the tie rod end position for reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Use a 21mm socket and breaker bar to loosen lug nuts (if not already).
• Lift the front with a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the wheel using a 21mm socket.

Step 2: Mark your current alignment reference

• Use a paint marker to mark the jam nut position on the tie rod threads.
• Use a tape measure to measure from the jam nut to the end of the tie rod end, and write it down.
• These marks help keep toe close.

Step 3: Loosen the jam nut

• Hold the inner tie rod area with an adjustable wrench (10") if needed.
• Loosen the jam nut using a 17mm combination wrench by turning it counterclockwise (just break it free, don’t spin it far).
• Clean exposed threads with a wire brush if rusty.

Step 4: Remove the cotter pin and stud nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Remove the tie rod end stud nut using a 17mm socket and breaker bar.
• Always use a new cotter pin.

Step 5: Separate the tie rod end from the steering knuckle

• Install and tighten a tie rod end puller (specialty) until the stud pops free. (A tie rod end puller is a clamp tool that presses the stud out without hammering.)
• If it’s stuck, apply more penetrating oil and try again.

Step 6: Remove the outer tie rod end (count turns)

• Spin the tie rod end off by hand while counting full turns (example: 17 turns).
• Record the number of turns so you can install the new one the same amount.

Step 7: Install the new outer tie rod end

• Thread the new tie rod end on by hand the exact number of turns you counted.
• Align it so the stud drops cleanly into the steering knuckle.

Step 8: Torque the stud nut and install a new cotter pin

• Install the stud nut using a 17mm socket.
• Torque to 49 Nm (36 ft-lbs) using a torque wrench.
• If the cotter pin hole doesn’t line up, tighten slightly until it does (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 9: Tighten the jam nut

• Hold the tie rod end with an adjustable wrench (10") so it doesn’t rotate.
• Tighten the jam nut using a 17mm combination wrench.
• Torque to 74 Nm (55 ft-lbs) using a torque wrench with a 17mm crowfoot wrench (specialty).
• If you don’t have a crowfoot, tighten it firmly and schedule alignment ASAP.

Step 10: Reinstall the wheel and lower the car

• Reinstall the wheel and hand-start lug nuts.
• Lower the car off the jack stands using the floor jack (rated 2-ton minimum).
• Torque lug nuts to 103 Nm (76 ft-lbs) in a star pattern using a torque wrench and 21mm socket.

---

✅ After Repair

• 🧪 Turn the steering wheel lock-to-lock while parked to confirm smooth movement and no binding.
• 🧪 Road test at low speed first; confirm the steering wheel is close to centered.
• 🧪 Get a front-end alignment as soon as possible (recommended same day) to set toe correctly.
• 🧪 Recheck the jam nut and lug nut torque after 25-50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor, not including alignment)

DIY Cost: $25-$80 (parts only)

You Save: $100-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
