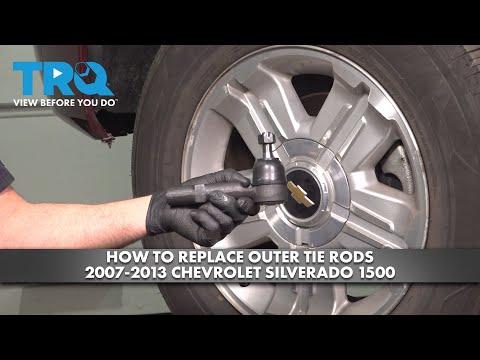

🔧 Sierra 1500 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering linkage to the front steering knuckle. Replacing it restores tight steering and helps prevent uneven tire wear, but you’ll still need an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• 🛑 Support your A4 with jack stands—never rely on a jack.
• Keep hands clear of pinch points while turning the steering.
• Use penetrating oil and avoid forcing rusty parts (broken studs waste time).
• You’ll need a professional alignment after replacement to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket 22mm
• Breaker bar 1/2"
• Torque wrench 1/2"
• Torque wrench 3/8"
• Combination wrench set 15mm-24mm
• Socket set 10mm-24mm
• Pliers
• Side cutters
• Hammer 16 oz
• Tie rod end puller (specialty)
• Pick tool
• Penetrating oil
• Paint marker
• Measuring tape
• Grease gun
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin assortment - Qty: 1
• Chassis grease (NLGI #2) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front lug nuts 1 turn using a 22mm lug nut socket and breaker bar.
• Spray penetrating oil on the tie-rod jam nut threads and the stud/nut at the steering knuckle.
• Tip: Take a photo of the assembly first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum).
• Support the truck with jack stands (rated 3-ton minimum).
• Remove the wheel using a 22mm lug nut socket.

Step 2: Mark your current alignment position

• Use a paint marker to mark the position of the jam nut on the tie rod.
• Measure from a fixed point (like the center of the tie-rod stud) to the jam nut using a measuring tape, and write it down.
• A “jam nut” is the thin lock nut that clamps the tie rod end in place.

Step 3: Loosen the jam nut

• Hold the inner tie rod with the correct size combination wrench.
• Loosen the jam nut using the correct size combination wrench (do not move it far yet).
• If the threads are crusty, add penetrating oil and work it back and forth gently.

Step 4: Remove the cotter pin (if equipped)

• Straighten and remove the cotter pin using pliers and side cutters.
• If it’s stuck, use a pick tool to help lift it out.

Step 5: Remove the tie rod stud nut

• Remove the nut from the tie-rod stud using the correct size socket and ratchet.
• If the stud spins, apply upward pressure on the tie rod end while loosening, or use the correct size combination wrench on the stud flats (if present).

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free.
• A tie rod puller is a clamp tool that pushes the stud out without damaging boots.
• If you don’t have the puller, you can strike the side of the knuckle boss with a hammer 16 oz (not the stud threads) until it pops loose.

Step 7: Remove the old tie rod end

• Spin the tie rod end off by hand, counting the turns (example: 17 turns).
• Write the turn count down—this helps keep toe close enough to drive to an alignment shop.

Step 8: Install the new tie rod end

• Apply a small amount of anti-seize compound to the threads (avoid the stud taper).
• Thread the new tie rod end on the same number of turns you counted, then line it up with your paint mark/measurement.

Step 9: Attach the stud to the steering knuckle and torque

• Insert the stud into the knuckle and install the nut by hand.
• Tighten with the correct size socket and torque wrench 3/8".
• Torque to 50 Nm (37 ft-lbs) then tighten to align the cotter pin hole (do not loosen to align).
• Install a new cotter pin using pliers.

Step 10: Tighten the jam nut

• Hold the inner tie rod with a combination wrench.
• Tighten the jam nut using the correct size combination wrench.
• Torque to 75 Nm (55 ft-lbs).

Step 11: Grease the new tie rod end (if it has a fitting)

• Attach the grease gun and pump chassis grease (NLGI #2) until the boot just starts to swell.
• Stop before the boot balloons—too much grease can pop the boot.

Step 12: Reinstall wheel and lower

• Reinstall the wheel using a 22mm lug nut socket.
• Lower the truck and torque the lug nuts in a star pattern using a torque wrench 1/2".
• Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Start the truck and turn the steering wheel lock-to-lock to confirm nothing binds or clunks.
• Road-test at low speed first. If the steering wheel is off-center or it pulls, stop and recheck your work.
• Get a front-end alignment as soon as possible (same day is best).
• Recheck the tie rod stud nut and jam nut for tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor + basic alignment)

DIY Cost: $35-$120 (parts only)

You Save: $100-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
