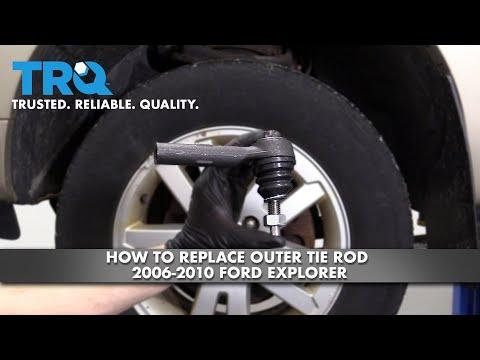

🔧 Explorer - Outer Tie Rod End Replacement

The outer tie rod end connects your steering linkage to the front steering knuckle. Replacing it restores tight steering and prevents uneven tire wear, but you’ll need an alignment afterward because toe angle can change.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Explorer with jack stands before working underneath.
• ⚠️ Keep hands clear when separating the tie rod taper; it can “pop” loose suddenly.
• ⚠️ Do not reuse the old cotter pin; install a new one.
• ⚠️ Plan for a professional alignment right after the repair to avoid rapid tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• Needle-nose pliers
• Diagonal cutters
• Paint marker
• Tape measure
• Wire brush
• Penetrating oil
• Adjustable wrench (12")
• 21mm wrench
• Tie rod end puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Chassis grease (if tie rod end has grease fitting) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front wheel lug nuts 1/2 turn before lifting.
• Spray penetrating oil on the tie-rod jam nut threads and the tie-rod stud nut.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a 19mm socket and breaker bar to loosen lug nuts (if not already).
• Lift the front corner with a floor jack and support with jack stands.
• Remove the lug nuts with a 19mm socket and take the wheel off.

Step 2: Mark your alignment reference

• Use a paint marker to mark the position of the jam nut relative to the inner tie rod threads.
• Use a tape measure to measure from the center of the tie-rod stud to a fixed point on the inner tie rod, and write it down.
• These marks help keep toe close.

Step 3: Loosen the jam nut

• Clean exposed threads with a wire brush.
• Hold the inner tie rod with an adjustable wrench (12").
• Use a 21mm wrench to loosen the jam nut (turn it counterclockwise) but do not move it far yet.

Step 4: Remove the cotter pin and nut

• Straighten and remove the cotter pin using needle-nose pliers and diagonal cutters.
• Remove the tie rod end nut with a 21mm wrench.

Step 5: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) onto the joint and tighten it until the taper pops free.
• A puller protects the rubber boot.

Step 6: Remove the old tie rod end (count the turns)

• Spin the tie rod end off by hand while counting each full turn until it comes off.
• Write down the exact number of turns.

Step 7: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads.
• Thread the new tie rod end on the exact same number of turns you counted.
• Line up your paint mark and measurement as closely as possible.

Step 8: Attach the stud to the steering knuckle

• Insert the tie-rod stud into the knuckle by hand.
• Install the nut and tighten with a 21mm wrench, then finish with a torque wrench.
• Torque to 115 Nm (85 ft-lbs), then continue slightly as needed to align the cotter-pin hole.
• Install a new cotter pin using needle-nose pliers (bend the legs over securely).

Step 9: Tighten the jam nut

• Hold the inner tie rod with an adjustable wrench (12").
• Tighten the jam nut against the tie rod end using a 21mm wrench.
• Torque to 55 Nm (41 ft-lbs).

Step 10: Grease the joint (if applicable)

• If the new tie rod end has a grease fitting, add chassis grease until the boot just begins to swell.

Step 11: Reinstall wheel

• Reinstall the wheel and hand-tighten the lug nuts.
• Lower the vehicle using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench.
• Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• Start your Explorer and turn the steering lock-to-lock to confirm smooth movement and no clunks.
• Test drive slowly and confirm the steering wheel is close to centered.
• Get a front-end alignment as soon as possible (same day is best).
• Recheck the cotter pin and jam nut tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor + alignment)

DIY Cost: $35-$110 (parts only, alignment extra)

You Save: $110-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
