🔧 Rear Window Regulator - Replacement

Assumption: This covers the rear power sliding window regulator/motor assembly in your Sierra. If your truck has a fixed rear glass with no sliding section, there is no regulator to replace.

The rear window regulator controls the movement of the sliding rear glass. On this truck, access usually requires removing the rear interior trim panel and then unbolting the regulator and motor assembly from the cab back panel.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. This prevents accidental window motor operation.
• The rear glass is heavy and can drop suddenly. Support it before removing the regulator.
• Wear safety glasses. Broken clips and sharp edges are common.
• Do not force the glass. If the tracks are stuck, stop and inspect for broken hardware.
• If your Sierra has a rear defroster, avoid stressing the electrical grid on the glass.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 1/4-inch ratchet
• 1/4-inch extension
• Trim panel removal tool
• Flat-blade screwdriver
• Torx T20 screwdriver
• Torx T30 screwdriver
• Needle-nose pliers
• Painter's tape
• Safety glasses
• Work gloves
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly - Qty: 1
• Rear window motor - Qty: 1
• Regulator mounting clips - Qty: 1 set
• Trim panel clips - Qty: 1 set
• Butyl sealant or trim adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the rear glass slightly if it still moves, then tape it in place with painter's tape.
• Disconnect the negative battery cable and wait 2 minutes before touching electrical connectors.
• Keep the ignition off during the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use a 10mm socket to remove the negative battery cable.
• Set the cable aside so it cannot spring back and touch the terminal.

Step 2: Remove the rear interior trim

• Use a trim panel removal tool to pop off the rear trim panel fasteners.
• Remove any visible screws with a 7mm socket or Torx T20 screwdriver.
• Pull the panel straight away from the cab carefully so you do not break the clips.
• Work slowly to avoid cracking the panel.

Step 3: Expose the regulator assembly

• Peel back any water shield or vapor barrier by hand.
• Keep the seal clean so it can be reused or resealed later.
• Locate the regulator tracks, motor, and glass attachment points.

Step 4: Secure the rear glass

• Use painter's tape to hold the glass in position from the outside if needed.
• If the glass is already loose, support it from inside while you work.
• Do not let the glass hang by the regulator.

Step 5: Disconnect the motor and glass hardware

• Use a Torx T30 screwdriver or 10mm socket to remove the motor and regulator fasteners, depending on the exact hardware installed.
• Unplug the motor connector by pressing the lock tab and pulling straight off.
• Remove the clips or bolts that connect the regulator to the glass.

Step 6: Remove the old regulator

• Use a 10mm socket to remove the regulator mounting bolts.
• Slide the regulator out through the access opening.
• If the tracks bind, tilt the assembly slightly and work it out without bending the metal.

Step 7: Install the new regulator

• Position the new regulator assembly in the opening by hand.
• Start all mounting bolts by hand before tightening.
• Use a 10mm socket to tighten the regulator bolts.
• Torque to 9 Nm (80 in-lbs).

Step 8: Reattach the motor and glass

• Reconnect the motor connector until it clicks.
• Attach the glass to the regulator using the original clips or new clips from the kit.
• Use a Torx T30 screwdriver or 10mm socket for the glass fasteners if equipped.
• Torque to 9 Nm (80 in-lbs).

Step 9: Test operation before reassembly

• Reconnect the negative battery cable with a 10mm socket.
• Turn the ignition on and test the rear window switch.
• Watch the glass travel fully up and down.
• If the glass tilts, stops early, or binds, stop and recheck the tracks.

Step 10: Reinstall trim and finish

• Reinstall the vapor barrier and press it firmly into place.
• Use a trim panel removal tool to reinstall the interior panel clips.
• Reinstall all screws with a 7mm socket or Torx T20 screwdriver.
• Press all trim pieces until they snap in securely.

---

✅ After Repair

• Cycle the rear window 5-6 times to confirm smooth movement.
• Check that the glass sits evenly and seals properly when closed.
• Listen for grinding or clicking, which usually means a bad track or broken clip.
• Verify the rear defroster still works if equipped.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$620 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

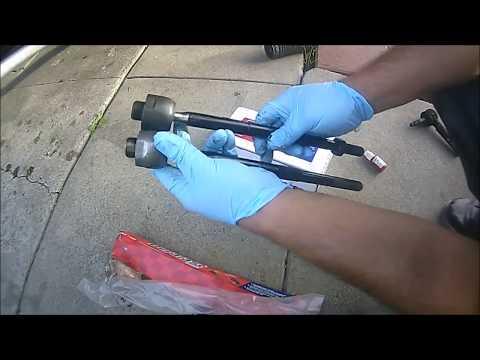

🔧 Tie Rod End - Replacement

On your Sierra, the tie rod end is part of the steering linkage and connects the steering rack/center link to the front knuckle. Replacing it restores steering feel and helps fix looseness, wandering, or clunks over bumps.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Park on level ground and set the parking brake.
• Lift the front of the truck and support it securely with jack stands. Never work under a truck held only by a jack.
• Keep hands clear of the steering linkage while separating the tie rod end.
• Get a professional alignment after the repair. Tie rod changes affect toe angle and steering wheel center.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug wrench
• 18mm socket
• 19mm socket
• 21mm socket
• 1/2-inch ratchet
• 1/2-inch breaker bar
• Torque wrench
• Tie rod end puller (specialty)
• Needle-nose pliers
• Paint marker
• Penetrating oil
• Safety glasses
• Work gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Outer tie rod end castle nut - Qty: 1
• Outer tie rod end cotter pin - Qty: 1
• Grease - Qty: 1

---

📋 Before You Begin

• Park the truck on level ground and point the steering wheel straight ahead.
• Loosen the front wheel lug nuts slightly before lifting.
• Raise the front and support it with jack stands.
• Use a paint marker to mark the tie rod end position on the inner tie rod. This helps keep the alignment closer enough to drive to the shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a 21mm lug wrench to loosen the lug nuts.
• Lift the truck with a floor jack and support it with jack stands.
• Remove the wheel and set it aside.

Step 2: Mark the old position

• Use a paint marker to mark the tie rod end location on the inner tie rod threads.
• This gives you a close starting point for toe adjustment.
• Do not skip this step.

Step 3: Remove the cotter pin and nut

• Use needle-nose pliers to straighten and remove the cotter pin.
• Use an 18mm socket or 19mm socket to remove the tie rod end castle nut.
• If the stud spins, apply upward pressure on the stud with the puller while loosening the nut.

Step 4: Separate the tie rod end from the knuckle

• Use a tie rod end puller (specialty) to pop the stud out of the steering knuckle.
• Apply penetrating oil if the stud is rusted in place.
• Never hammer directly on the stud threads.

Step 5: Remove the old tie rod end

• Count the turns as you unscrew the tie rod end from the inner tie rod.
• Use your hands to spin it off, or use a 19mm socket on the jam nut if needed.
• Match the new part to the old one before installation.

Step 6: Install the new tie rod end

• Thread the new tie rod end on the same number of turns you counted during removal.
• Align the stud with the knuckle and insert it fully.
• Install the new castle nut by hand first.
• Use an 18mm socket or 19mm socket to tighten the nut.
• Torque to 61 Nm (45 ft-lbs).

Step 7: Install the cotter pin

• Use needle-nose pliers to insert the new cotter pin through the castellated nut and stud.
• Bend the ends over so it cannot fall out.
• If the hole does not line up, tighten the nut slightly until it does. Do not loosen it to fit.

Step 8: Tighten the jam nut

• Use an 18mm socket or 19mm socket to tighten the jam nut against the tie rod end.
• Torque to 95 Nm (70 ft-lbs).
• Hold the tie rod end steady while tightening.

Step 9: Reinstall the wheel

• Put the wheel back on and hand-tighten the lug nuts.
• Lower the truck to the ground.
• Use a 21mm lug wrench or torque wrench to tighten the lug nuts in a star pattern.
• Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Start the truck and turn the steering wheel lock to lock to check for binding.
• Drive slowly first and confirm the steering wheel feels centered.
• Schedule a professional wheel alignment as soon as possible.
• Recheck the tie rod jam nut and castle nut after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
