🔧 Camry - Tie Rod End Replacement

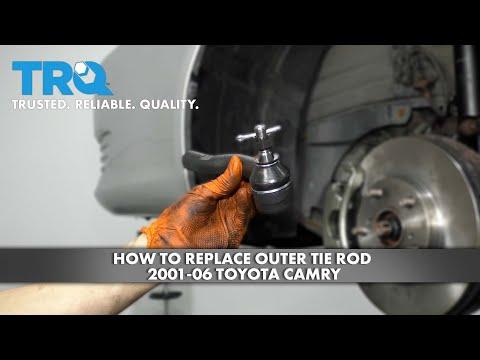

On your Camry, the “tie rod end” most people mean is the outer tie rod end (the part that connects the steering rack linkage to the steering knuckle at the wheel). Replacing it restores tight steering and prevents uneven tire wear, but the toe alignment will be off afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands on solid points; never rely on a floor jack.
• 🧤 Wear safety glasses; rust and dirt fall when separating the joint.
• 🔥 If you drive first, let brakes/rotors cool before working near the wheel area.
• 📏 Plan for an alignment after: driving without alignment can ruin tires quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8" or 1/2"
• 21mm socket
• 14mm wrench
• 17mm wrench
• 19mm socket
• Pliers
• Hammer (16 oz)
• Tie rod end puller (specialty)
• Wire brush
• Penetrating oil
• Paint marker
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting (don’t remove yet).
• Spray penetrating oil on the tie rod end jam nut and the stud/nut area at the knuckle; let it soak 5–10 minutes.
• Turn the steering wheel so the tie rod end you’re working on is easy to reach.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a 21mm socket and breaker bar 1/2" to loosen lug nuts if needed.
• Lift with a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the lug nuts with a 21mm socket and take the wheel off.

Step 2: Mark the current adjustment (to keep it close)

• Use a paint marker to mark the position of the jam nut against the tie rod threads.
• Measure the exposed thread length with a tape measure and write it down.
• This helps you drive to the alignment shop.

Step 3: Loosen the jam nut

• Clean threads with a wire brush.
• Hold the inner tie rod with a 17mm wrench (if needed) and loosen the jam nut using a 19mm socket or 19mm wrench (whichever fits your jam nut style).
• Do not spin it far yet—just “crack it loose.”

Step 4: Remove the cotter pin and nut from the tie rod stud

• Straighten and remove the cotter pin using pliers.
• Remove the tie rod end stud nut using a 17mm wrench or 17mm socket (nut size can vary).
• If the stud spins, apply upward pressure to the joint.

Step 5: Separate the tie rod end from the steering knuckle

• Install and tighten a tie rod end puller (specialty) until the taper “pops” free.
• If you don’t have a puller: strike the side of the knuckle boss with a hammer (16 oz) (do not hit the stud threads).
• A sharp hit works better than many light hits.

Step 6: Unscrew the old tie rod end (count turns)

• Spin the tie rod end off by hand, counting the exact number of turns until it comes off.
• Write the number down—this is your “close alignment” setting.

Step 7: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads.
• Thread the new tie rod end on the same number of turns you counted coming off.
• Snug the jam nut by hand against the tie rod end.

Step 8: Reconnect to the knuckle and tighten

• Insert the stud into the knuckle.
• Tighten the stud nut using a torque wrench 3/8" or 1/2" and the correct socket.
• Torque to Toyota specification for your Camry.
• Install a new cotter pin using pliers (never reuse the old one).

Step 9: Tighten the jam nut

• Hold the tie rod (if needed) with a 17mm wrench.
• Tighten the jam nut using a 19mm socket or 19mm wrench.
• Torque to Toyota specification for your Camry.

Step 10: Reinstall wheel and lower

• Install the wheel and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench 3/8" or 1/2".
• Torque to Toyota specification for your Camry.

---

✅ After Repair

• Turn the steering wheel lock-to-lock and confirm nothing binds or rubs.
• Road test at low speed first; verify the steering wheel returns normally and there are no clunks.
• Get a front alignment (toe adjustment) as soon as possible.
• Recheck the jam nut area for movement after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + basic alignment; varies by area)

DIY Cost: $25-$80 (parts only)

You Save: $100-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
