🔧 Outback - Mass Air Flow (MAF) Sensor Replacement

Your Outback’s MAF sensor measures how much air enters the engine so the computer can add the right amount of fuel. If it’s failing, you can get rough idle, poor acceleration, or a check-engine light. Replacement is quick because it sits in the air intake tube right by the air box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns near the intake area.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to help the ECU “relearn” airflow after the new sensor is installed.
• ⚠️ Do not touch the sensing element inside the MAF; it’s delicate and oils/dirt can ruin it.
• ⚠️ Keep dirt out of the intake tube; anything that falls in can get pulled into the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Flathead screwdriver
• Phillips #2 screwdriver
• Torx T20 bit
• Pick tool
• OBD2 scan tool
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring / seal - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air box and intake tube (the plastic tube leading from the air filter box toward the engine).
• Disconnect the battery negative terminal: use a 10mm socket to loosen the clamp and remove the cable; tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

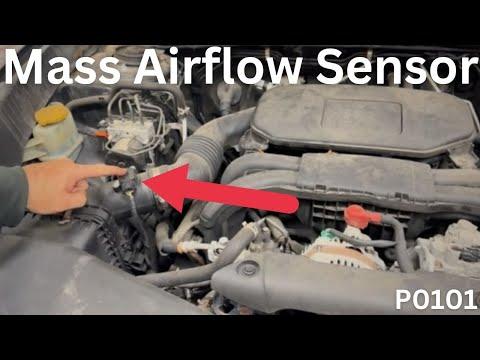

Step 1: Locate the MAF sensor

• Find the sensor installed in the intake tube right after the air filter box (it will have an electrical connector plugged into it).
• It’s usually held by two small screws.

Step 2: Unplug the electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a pick tool gently to lift the lock tab while pulling (don’t yank the wires).

Step 3: Remove the MAF mounting screws

• Remove the two screws using either a Phillips #2 screwdriver or a Torx T20 bit (some Outbacks use one style, some the other).
• Set the screws aside where they won’t fall into the engine bay.

Step 4: Remove the MAF sensor from the intake tube

• Pull the sensor straight out. If it’s tight, wiggle gently while pulling.
• Remove the old seal/O-ring (if it stayed in the intake tube) using a pick tool.

Step 5: Install the new MAF sensor and seal

• Install the new MAF sensor O-ring / seal onto the new sensor (or into the bore, depending on design).
• Slide the new sensor straight into place, making sure it seats fully and evenly.

Step 6: Reinstall and tighten the MAF screws

• Start both screws by hand to avoid cross-threading.
• Tighten using a Phillips #2 screwdriver or Torx T20 bit.
• Torque to 1.5 Nm (13 in-lbs)

Step 7: Reconnect the electrical connector

• Push the connector on until it clicks and locks.
• Gently tug to confirm it’s latched.

Step 8: Reconnect the battery

• Reinstall the negative battery cable using a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs)

---

✅ After Repair

• Turn the key on (engine off) for 10 seconds, then start the engine and let it idle for 3–5 minutes.
• Use an OBD2 scan tool to clear any stored MAF-related codes, if present.
• Road test: do a gentle 10–15 minute drive with a few smooth accelerations; confirm no hesitation and no warning lights.
• If the check-engine light returns, recheck the connector latch, the seal seating, and the air intake tube for cracks or loose clamps.

---

💰 DIY vs Shop Cost

Shop Cost: ₹7,500-₹22,000 (parts + labor)

DIY Cost: ₹6,000-₹20,000 (parts only)

You Save: ₹1,000-₹4,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
