🔧 Traverse - Mass Air Flow (MAF) Sensor Replacement

On your Traverse, the MAF sensor measures how much air is entering the engine so the computer can deliver the right amount of fuel. A dirty or failing MAF can cause rough idle, hesitation, poor mileage, or a check engine light. Replacement is usually quick because it sits in the air intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake and radiator area.
• ⚠️ Turn the ignition OFF and keep the key/fob away from the vehicle so the system can go to sleep.
• ⚠️ Disconnecting the battery is recommended to prevent accidental shorts and to help reset learned airflow values.
• ⚠️ Never touch the sensing element inside the MAF; it’s fragile and oils from fingers can ruin it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 screwdriver
• Flat-blade screwdriver (small)
• Trim clip tool
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose items from the engine bay.
• Disconnect the negative battery cable using a 10mm socket. (Negative is the “-” terminal.)
• Identify the MAF: it’s on the intake duct between the air filter box and the throttle body, with an electrical connector plugged into it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

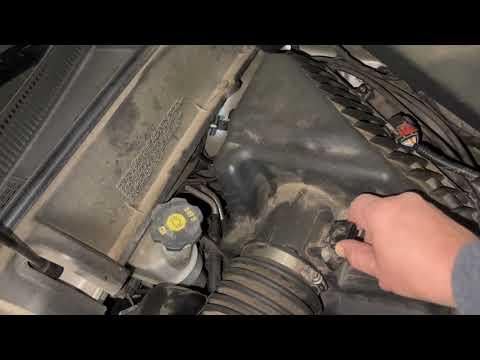

Step 1: Locate the MAF sensor on the intake tube

• Look for a small sensor body on the air intake duct with a plug (wiring connector) attached.
• If an engine cover blocks access, lift it off after removing fasteners using a 10mm socket and 1/4" drive ratchet (some covers pull up; some use bolts).

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stubborn, use a flat-blade screwdriver (small) to gently lift the lock tab. Don’t pry on the wires.
• Spray a quick burst of electrical contact cleaner into the connector and let it air-dry.

Step 3: Remove the MAF sensor from the intake tube

• Remove the MAF retaining screws using a Torx T20 screwdriver.
• Pull the sensor straight out. If it sticks, wiggle gently—do not twist hard.
• Remove the old seal if it stayed in the intake tube.

Step 4: Install the new MAF sensor and seal

• Lightly seat the new MAF sensor O-ring seal onto the new sensor (or into the bore, depending on design).
• Insert the new sensor straight in, fully seated and aligned.
• Install the screws by hand first, then tighten with the Torx T20 screwdriver.
• Finish tightening with a torque wrench (inch-pound): Torque to 3 Nm (27 in-lbs).

Step 5: Reconnect the connector and battery

• Push the electrical connector on until it clicks.
• Reconnect the negative battery cable using a 10mm socket and 1/4" drive ratchet. Tighten snug (do not over-tighten).

Step 6: Reinstall any covers and do a quick visual check

• Reinstall the engine cover (if removed) using the 10mm socket or by pressing it back into place.
• Verify the intake duct is fully seated and no tools are left in the engine bay.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. The idle may hunt briefly while it relearns.
• Take a 10–15 minute test drive with a mix of city speeds and steady cruising.
• If the check engine light stays on, the code may need to be cleared with a scan tool.
• If symptoms remain, inspect for intake air leaks (loose clamps or cracked ducting) and confirm the air filter is installed correctly.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$420 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $110-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
