🔧 Colorado - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your Colorado’s engine so the computer can add the right amount of fuel. A failed or dirty MAF can cause rough idle, hesitation, poor fuel economy, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns near the intake and engine bay.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to help avoid setting new fault codes while unplugging the sensor.
• ⚠️ Do not touch the sensing element inside the MAF; it’s delicate and oils from fingers can damage readings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torx T20 bit
• Small flat-blade screwdriver
• Torque wrench (inch-pound)
• 10mm wrench
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the intake tube/air duct between the air box and the engine.
• Disconnect the battery negative cable: use a 10mm wrench to loosen the terminal and move the cable aside so it can’t spring back. Negative cable is the “-” terminal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

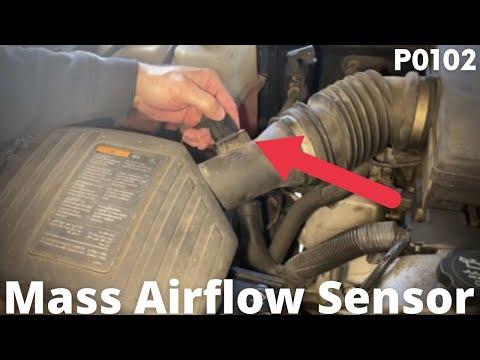

Step 1: Find the MAF sensor on the intake duct

• The MAF is typically mounted in the air intake duct/air box outlet and has an electrical connector.
• Put on nitrile gloves and safety glasses.

Step 2: Unplug the MAF electrical connector

• Use a small flat-blade screwdriver only if needed to gently lift the connector lock tab.
• Pull the connector straight off (don’t yank on the wires).

Step 3: Remove the MAF sensor from the intake

• Use a Torx T20 bit with a 1/4" ratchet (and 3" extension (1/4") if needed) to remove the MAF mounting screws.
• Carefully pull the MAF straight out. If it feels stuck, wiggle gently—don’t pry on the plastic housing.
• Remove the old seal (O-ring) if it stayed in the housing.

Step 4: Install the new MAF sensor and seal

• Install the new MAF sensor O-ring seal on the sensor (or in the housing, whichever matches your part).
• Slide the new MAF in straight so the seal doesn’t pinch.
• Install the screws by hand first to avoid cross-threading, then tighten with the Torx T20 bit.
• Torque to 3 Nm (27 in-lbs) using a torque wrench (inch-pound).

Step 5: Reconnect the connector and re-secure the intake (if moved)

• Push the electrical connector on until it clicks.
• If you loosened any intake hose clamps for access, tighten them with an 8mm socket.
• Torque to 5 Nm (44 in-lbs) for the intake clamp(s) you loosened.

Step 6: Reconnect the battery

• Reconnect the negative terminal using a 10mm wrench.
• Torque to 17 Nm (13 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. Listen for air leaks (hissing) around the intake duct.
• If the check-engine light was on, it may clear after a few drive cycles; if it stays on, scan for codes to confirm the fix.
• Test drive 10–15 minutes. Confirm normal throttle response and no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $110-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
