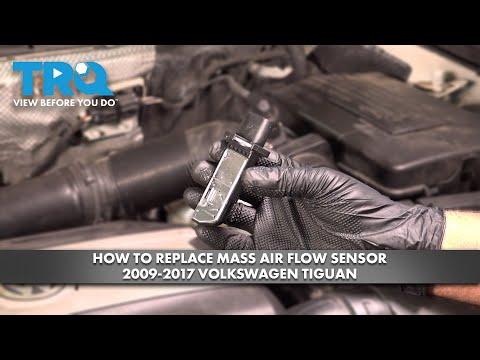

🔧 Tiguan - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your Tiguan’s engine so the computer can deliver the right amount of fuel. Replacing it is usually a quick job on the intake tube near the air filter, but some versions have the sensor integrated into the airbox outlet.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot turbo/intake parts can burn you.
• ⚠️ Turn ignition fully OFF and keep the key/fob away from the vehicle while unplugging sensors.
• ⚠️ If you disconnect the battery, you may lose radio clock/settings.
• ⚠️ Don’t touch the sensing element inside the MAF; it’s delicate.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• Torx T20 screwdriver
• Torx T25 screwdriver
• 7mm socket
• 1/4" ratchet
• Small flathead screwdriver
• Flashlight
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included with sensor) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and let the engine cool down.
• If you choose to disconnect the battery: use a 10mm wrench to loosen the negative terminal and remove it, then wait 2 minutes. Torque to 6 Nm (53 in-lbs) on re-tightening.
• Torx screws are “star-shaped” fasteners.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Use a flashlight and look at the air intake tube right after the air filter box.
• The MAF usually has an electrical connector (often 4–6 wires) and is held in by Torx screws.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab by hand. If it’s tight, gently help it with a small flathead screwdriver (don’t break the tab).
• Pull the connector straight off the sensor.
• Don’t pull on the wires.

Step 3A: Remove a bolt-in MAF sensor (most common)

• Use a Torx T20 screwdriver (sometimes Torx T25 screwdriver) to remove the MAF retaining screws.
• Carefully wiggle and pull the sensor straight out.
• Remove the old O-ring/seal if it stayed in the housing.

Step 3B: If your Tiguan has an integrated MAF in the airbox outlet

• Use a 7mm socket with a 1/4" ratchet to loosen the intake hose clamp at the airbox outlet.
• Use a Torx T25 screwdriver to remove any fasteners holding the outlet duct/MAF section (if equipped).
• Remove the duct section, then remove the MAF from that piece using the Torx T20 screwdriver.

Step 4: Install the new MAF sensor

• Lightly seat the new MAF sensor O-ring/seal (do not use oil/grease on the sensing tip).
• Insert the new sensor straight in without forcing it.
• Install the retaining screws using a Torx T20 screwdriver (or Torx T25 screwdriver if that matches your screws). Torque to 2 Nm (18 in-lbs).

Step 5: Reconnect intake tubing (if removed)

• Re-seat the hose fully, then tighten the clamp using a 7mm socket with a 1/4" ratchet until snug.
• Make sure nothing is pinched and the tube is fully seated all the way around.

Step 6: Reconnect the electrical connector

• Push the connector onto the sensor until it clicks.
• If you’re using it, apply a tiny amount of dielectric grease (a non-conductive connector protectant) to the connector seal—not the pins—before reconnecting.

Step 7: Clear codes (recommended)

• Plug in an OBD2 scan tool and clear any MAF-related codes (like P0101/P0102).
• If codes return immediately, don’t keep driving—there may be an intake air leak or wiring issue.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes.
• Listen for hissing/whistling (intake leak) and confirm the idle is smooth.
• Test drive 10–15 minutes with gentle acceleration, then re-check for warning lights.
• Re-scan with your OBD2 scan tool to confirm no codes returned.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $70-$200 (parts only)

You Save: $130-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
