🔧 Atlas - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. If it fails or gets contaminated, you can get rough idle, poor power, or a check engine light. On your Atlas, the MAF sensor is mounted in the intake ducting near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working around the intake.
• ⚠️ Disconnect the negative battery cable to prevent electrical damage.
• ⚠️ Do not touch the sensing element inside the MAF (it’s fragile).
• ⚠️ Keep dirt out of the intake tube; don’t leave it open longer than needed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 bit
• 7mm socket
• Flat trim tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor seal/O-ring (if not included with sensor) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and remove any loose clothing/jewelry.
• 🧰 Disconnect the battery negative terminal using a 10mm socket (negative is the “-” post).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Use a flashlight to find the intake tube coming from the air filter box toward the engine.
• The MAF sensor is the small module with an electrical connector plugged into it, mounted in/onto the intake duct near the air box.

Step 2: Unplug the electrical connector

• Use a flat trim tool to gently lift the connector lock tab if needed (don’t pry hard).
• Pull the connector straight off the sensor. Wiggle gently—don’t yank wires.

Step 3: Create working room (if the intake tube blocks access)

• Use a 7mm socket and 1/4" ratchet to loosen the hose clamp(s) on the intake tube near the sensor.
• Carefully reposition the tube just enough to access the MAF screws. Don’t crack the plastic ducting.

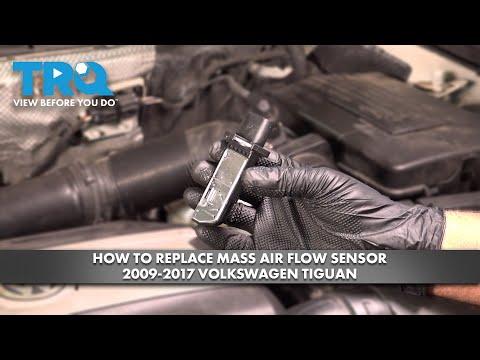

Step 4: Remove the MAF sensor

• Use a Torx T20 bit, 1/4" ratchet, and extension to remove the MAF mounting screws.
• Pull the sensor straight out. If it feels stuck, gently twist while pulling.
• Remove and inspect the old seal/O-ring (if equipped). Make sure it did not stay stuck in the housing.

Step 5: Install the new MAF sensor

• Install the new seal/O-ring (if used). It should sit flat and not be pinched.
• Slide the new sensor into place in the same orientation as the old one.
• Install the screws by hand first to avoid cross-threading.
• Tighten the screws evenly using the Torx T20 bit: Torque to 3 Nm (27 in-lb).

Step 6: Reassemble the intake tube

• Reposition the intake tube fully onto its fittings.
• Tighten the hose clamp(s) using the 7mm socket: Torque to 3 Nm (27 in-lb).
• Double-check the tube is seated all the way around (no gaps).

Step 7: Plug the connector back in and reconnect the battery

• Push the electrical connector onto the MAF until it clicks/locks.
• Reconnect the negative battery cable using a 10mm socket: Torque to 6 Nm (53 in-lb).

---

✅ After Repair

• 🧪 Start the engine and let it idle for 2-3 minutes; it should idle smoothly.
• 🧪 Check for air leaks: listen for hissing around the intake tube and clamps.
• 🧪 If the check engine light was on, clear codes with a scan tool and confirm they don’t return after a short drive.
• 🧪 Take a 10-15 minute test drive; recheck that clamps stayed tight.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $100-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
