🔧 Avalon - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures the air entering your engine so the computer can add the right amount of fuel. If it fails or gets contaminated, your Avalon may run rough, hesitate, or set a check-engine light. Replacement is a straightforward remove-and-reinstall job on the intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake and radiator area.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to avoid setting extra fault codes.
• ⚠️ Do not touch the sensor’s sensing element (the tiny wire/film inside). Fingerprints can ruin readings.
• ⚠️ Keep dirt out of the intake tube. Anything that falls in can be sucked into the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Torque wrench (inch-pound)
• Phillips #2 screwdriver
• Torx T20 security bit (specialty)
• Flat-blade screwdriver
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1

---

📋 Before You Begin

• Park your Avalon on level ground and set the parking brake.
• Turn the ignition fully OFF and remove the key/fob from the cabin.
• Open the hood and locate the air filter box and intake tube (the large black plastic tube).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

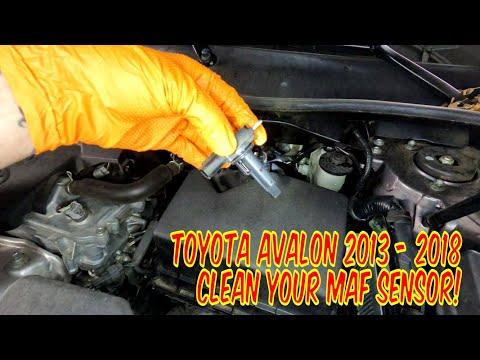

Step 1: Locate the MAF sensor on the intake tube

• The MAF sensor is mounted on the intake tube just downstream of the air filter box and has an electrical connector.
• Look for the plug with multiple wires.

Step 2: Unplug the MAF electrical connector

• Press the locking tab and pull the connector straight off by hand.
• If it’s stuck, use a flat-blade screwdriver gently to help lift the tab (don’t pry hard).

Step 3: Remove the MAF mounting screws

• Use a Torx T20 security bit (specialty) to remove the two screws.
• If your Avalon uses Phillips-head screws instead, remove them with a Phillips #2 screwdriver.
• Set the screws aside where they won’t fall into the engine bay.

Step 4: Remove the MAF sensor from the intake tube

• Pull the sensor straight out by hand. Wiggle gently if the seal is tight.
• Do not drop anything into the open sensor hole.
• Remove the old MAF sensor O-ring/seal if it stays behind.

Step 5: Install the new MAF sensor and seal

• Install the new MAF sensor O-ring/seal onto the new sensor (if it’s not already installed).
• Slide the new MAF sensor straight into the intake tube opening. It should seat fully and evenly.

Step 6: Reinstall and tighten the MAF screws

• Start both screws by hand first to avoid cross-threading.
• Tighten using the Torx T20 security bit (specialty) or Phillips #2 screwdriver (whichever matches your screws).
• Final tighten with a torque wrench (inch-pound): Torque to 2.0 Nm (18 in-lbf)

Step 7: Reconnect the MAF connector and battery

• Push the connector on until it clicks.
• Reconnect the negative battery terminal using a 10mm socket and snug it firmly.

---

✅ After Repair

• Start your Avalon and let it idle for 1–2 minutes. The idle should be smooth.
• Check that the intake tube is fully seated and that no tools are left in the engine bay.
• If the check-engine light was on, it may clear after a few drive cycles; otherwise clear codes with a scan tool.
• Test drive: light throttle first, then moderate acceleration to confirm no hesitation.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $90-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
