🔧 BRZ - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the ECU can add the right amount of fuel. If it fails or gets contaminated, you can get rough idle, stalling, poor mpg, or a check engine light. On your BRZ, it’s mounted in the air intake tube right by the air box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake and radiator fans.
• ⚠️ Disconnect the negative battery terminal if you want to prevent accidental shorts and help reset fuel trims (recommended).
• ⚠️ Do not touch the sensor element inside the MAF—it's fragile and can be ruined by fingerprints.
• ⚠️ Keep dirt out of the intake; anything that falls in can damage the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Small flathead screwdriver
• Trim clip tool
• Inch-pound torque wrench (10–80 in-lb)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring (if not included with sensor) - Qty: 1
• Mass air flow sensor cleaner (MAF-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Open the hood and remove any loose items from the engine bay.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

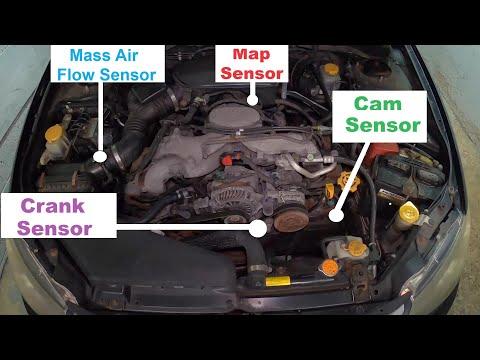

Step 1: Locate the MAF sensor

• Find the air box on the front/left side of the engine bay.
• The MAF sensor is the small module plugged into the intake tube/air box outlet with an electrical connector.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a small flathead screwdriver to gently help the tab (don’t pry hard on the wires).
• Pull on the connector, not the wiring.

Step 3: Remove the MAF sensor screws

• Remove the two retaining screws using a Phillips #2 screwdriver.
• If the screws are Torx instead of Phillips, use a Torx T20 screwdriver.
• Set the screws somewhere safe—they’re easy to lose.

Step 4: Remove the MAF sensor from the housing

• Gently twist and pull the sensor straight out by the plastic body.
• Inspect the O-ring (rubber seal). If it’s torn, flattened, or missing, replace it.

Step 5: (Optional) Clean the housing and compare parts

• Lightly wipe the MAF mounting area with a clean cloth (do not drop anything into the intake).
• Compare the new sensor to the old one (same shape and connector).
• If you’re reusing the old sensor temporarily, only clean it with mass air flow sensor cleaner (MAF-safe) and let it fully dry before reinstalling.

Step 6: Install the new MAF sensor

• Install the O-ring (if separate) onto the new sensor.
• Slide the sensor straight into the housing until fully seated.
• Reinstall the screws by hand first to avoid cross-threading, then snug them with a Phillips #2 screwdriver or Torx T20 screwdriver.
• Finish tightening with an inch-pound torque wrench (10–80 in-lb): Torque to 1.5 Nm (13 in-lb).

Step 7: Reconnect the connector and battery

• Push the electrical connector on until it clicks.
• If you disconnected the battery, reinstall the negative terminal using a 10mm socket and tighten it snug.

---

✅ After Repair

• Start the engine and let it idle for 3–5 minutes with all accessories OFF (helps the ECU re-learn idle).
• Confirm idle is smooth and the check engine light stays off.
• Take a short test drive (10–15 minutes). Watch for hesitation, stalling, or a returning light.
• If the check engine light returns, the next step is scanning for codes and checking for intake air leaks (loose clamps/cracked intake tube).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $90-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
