🔧 Murano - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can set the correct fuel mixture. A faulty MAF can cause rough idle, hesitation, poor fuel economy, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake.
• ⚠️ Turn ignition fully OFF and keep the key away from the vehicle.
• ⚠️ Disconnect the negative battery cable to prevent electrical damage.
• ⚠️ Do not touch the sensor element inside the MAF; it’s delicate.
• ⚠️ Do not drop screws into the air intake tube.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Trim clip removal tool
• Small flat-blade screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included) - Qty: 1
• Dielectric grease (electrical connector) - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to Park.
• Open the hood and make sure the engine is cool to the touch.
• Disconnect the negative battery terminal: use a 10mm socket and move the cable aside so it can’t spring back.
• Locate the MAF: it’s mounted in the air intake tube near the air filter box, with an electrical connector plugged into it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove any covers blocking access

• Use a trim clip removal tool to pop up any plastic push-clips (a push-clip is a plastic fastener that “pops” in/out).
• If equipped with a top engine cover, remove it by hand or remove fasteners with a 10mm socket.
• Use a flashlight to clearly see the MAF and its wiring connector.

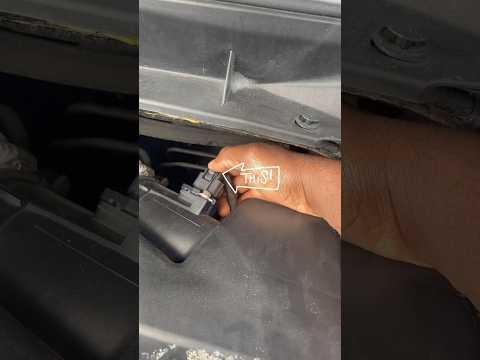

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab by hand; if it’s stubborn, gently help it with a small flat-blade screwdriver.
• Pull the connector straight off the sensor (don’t pull on the wires).
• Tip: Wiggle gently; don’t force it.

Step 3: Remove the MAF sensor from the intake tube

• Remove the MAF mounting screws using a Torx T20 screwdriver.
• Set the screws somewhere safe so they can’t fall into the engine bay.
• Carefully pull the MAF sensor straight out of the intake tube.
• If it feels stuck, gently twist while pulling—do not pry on the plastic housing.

Step 4: Transfer/inspect the seal and install the new MAF

• Check for an O-ring/seal on the old sensor or in the intake tube opening.
• If your new MAF did not come with a seal, install a new MAF sensor O-ring/seal in the same position.
• Slide the new MAF sensor into the intake tube in the same orientation as the old one.
• Install the screws by hand first to avoid cross-threading, then tighten with a Torx T20 screwdriver.
• Torque to 2.0-3.0 Nm (18-27 in-lbs)

Step 5: Reconnect the electrical connector

• Apply a tiny amount of dielectric grease to the connector seal (not the metal pins).
• Push the connector on until it clicks/locks.

Step 6: Reinstall covers and reconnect the battery

• Reinstall any covers/clips you removed using a trim clip removal tool and/or 10mm socket.
• Reconnect the negative battery cable using a 10mm socket.
• Torque to 5-6 Nm (44-53 in-lbs)

---

✅ After Repair

• Start your Murano and let it idle for 2–3 minutes.
• Verify the idle is smooth and the engine doesn’t stumble when you lightly rev it.
• Take a short 10-minute test drive and confirm acceleration feels normal.
• If the check engine light was on, it may clear after a few drive cycles; otherwise, a scan tool can clear codes after confirming the fix.
• If symptoms remain, inspect the intake tube for cracks and check that hose clamps are tight.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor)

DIY Cost: $90-$260 (parts only)

You Save: $90-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-0.8 hours.

---
