🔧 CX-9 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your CX-9 so the engine computer can add the right amount of fuel. A failing MAF can cause rough idle, hesitation, poor fuel economy, or a check engine light, and replacement is usually straightforward because it sits in the air intake tube near the air box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work on a cool engine to avoid burns from hot turbo/engine parts.
• Disconnect the negative battery cable before unplugging sensors to help prevent accidental shorts and fault codes.
• Do not touch the sensing element inside the MAF opening; it’s delicate and can be damaged easily.
• Keep dirt out of the intake tube; any debris can get pulled into the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4" drive)
• Torx T20 bit
• Torx T20 security bit set (specialty)
• Small flat-blade screwdriver
• Needle-nose pliers
• Inch-pound torque wrench (specialty)
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your CX-9 on level ground and set the parking brake.
• Open the hood and let the engine cool fully.
• Disconnect the negative battery cable using a 10mm socket and move it aside so it can’t spring back.

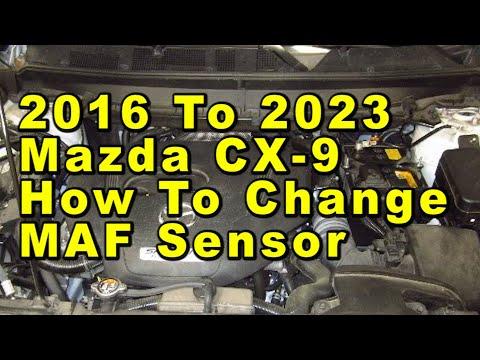

• Locate the MAF sensor on the air intake tube near the air box (it will have an electrical connector and is held in by two small screws).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access to the MAF sensor

• Use a shop light to clearly see the intake tube and the sensor connector.
• If an engine cover blocks access, remove it by lifting it straight up with your hands; if fasteners are present, remove them with the appropriate 10mm socket.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab by hand; if it’s stubborn, gently help the tab with a small flat-blade screwdriver.
• Pull the connector straight off (do not pull on the wires).
• Wiggle gently; don’t force it.

Step 3: Remove the MAF sensor retaining screws

• Use a Torx T20 bit to remove the two screws holding the MAF sensor to the intake tube.
• If the screws have a center pin (tamper-resistant), use a Torx T20 security bit set (specialty) instead.
• Set the screws aside where they can’t fall into the engine bay.

Step 4: Remove the MAF sensor from the intake tube

• Pull the sensor straight out by hand.
• If it feels stuck, gently twist it while pulling; do not pry hard on the plastic intake tube.
• Inspect the sensor O-ring (seal). If it stayed behind in the tube, remove it by hand so the new sensor seats correctly.

Step 5: Install the new MAF sensor

• Compare the new sensor to the old one to make sure the shape and connector match.
• Insert the new sensor straight into the intake tube and make sure it sits fully flat and square.
• Install the two screws by hand first (to avoid cross-threading), then snug them using a Torx T20 bit.
• Use an inch-pound torque wrench (specialty) to tighten the screws; a torque wrench is a tool that clicks when you reach the correct tightness. Torque to 22 in-lbs (2.5 Nm).

Step 6: Reconnect the electrical connector

• Apply a very small amount of dielectric grease to the connector seal (not on the metal pins).
• Push the connector on until it clicks/locks.
• Gently tug-check the connector to confirm it’s latched.

Step 7: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Make sure the terminal is fully seated and secure.

---

✅ After Repair

• Start your CX-9 and let it idle for 2-3 minutes. The idle may fluctuate briefly while it re-learns airflow.
• If the check engine light was on, clear codes with a scan tool after the repair; if you don’t have one, the light may turn off after a few drive cycles if the issue is fixed.
• Test drive for 10-15 minutes and confirm: normal acceleration, no stumbling/hesitation, and no warning lights.
• Recheck the MAF connector and screws after the test drive to confirm everything is secure.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $90-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
