🔧 Suburban - Mass Air Flow (MAF) Sensor Replacement

Your Suburban’s MAF sensor measures incoming air so the engine computer can deliver the right fuel amount. A dirty or failing MAF can cause rough idle, hesitation, poor fuel economy, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF and cool to avoid burns.
• ⚠️ Keep dirt out of the intake tube/airbox while the sensor is out.
• ⚠️ Don’t touch the sensor element inside the MAF (it’s delicate).
• ⚠️ Battery disconnect is recommended to prevent accidental shorts and to help avoid setting new codes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Flathead screwdriver
• 7mm socket
• Torx T20 driver
• Torx T15 driver
• Trim clip tool
• Nitrile gloves
• Safety glasses
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor seal/O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to Park.
• Open the hood and locate the air intake tube between the airbox and throttle body.
• Disconnect the negative battery cable using a 10mm socket. (Negative is the “-” terminal.)
• Tip: Take a quick photo of the connector.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

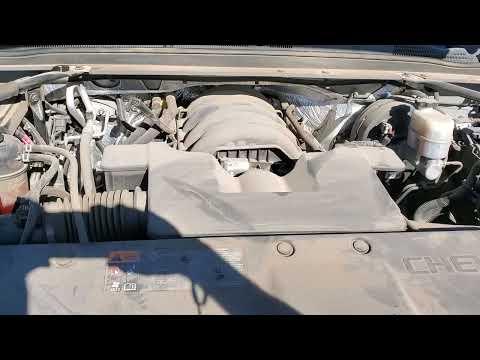

Step 1: Locate the MAF sensor

• Find the MAF sensor on the intake tube/airbox area (it will have an electrical connector and is mounted with two small screws).

Step 2: Unplug the MAF electrical connector

• Press the locking tab and pull the connector straight off the sensor.
• If it’s stubborn, use a trim clip tool gently to help lift the lock without breaking it.

Step 3: Loosen the intake tube if it blocks access (if needed)

• If you can’t comfortably reach the MAF screws, loosen the intake clamp(s) using a 7mm socket or flathead screwdriver.
• Move the tube slightly for access—don’t fully remove it unless you have to.

Step 4: Remove the MAF mounting screws

• Remove the two MAF screws using a Torx T20 driver.
• If the bit doesn’t fit, switch to a Torx T15 driver (GM uses either depending on supplier).
• Set the screws aside where they won’t fall into the engine bay.

Step 5: Remove the old MAF sensor

• Pull the sensor straight out.
• Remove the old MAF sensor seal/O-ring if it stayed behind in the housing.
• Tip: Cover the opening briefly to keep dust out.

Step 6: Install the new MAF sensor and seal

• Install the new MAF sensor seal/O-ring (if separate) so it sits flat and not twisted.
• Insert the new MAF sensor in the same orientation as the old one.
• Start both screws by hand to avoid cross-threading.
• Tighten the screws using a Torx T20 driver (or Torx T15 driver if that’s what fits). Do not overtighten—these are small screws going into plastic.

Step 7: Re-seat the intake tube and tighten clamps (if loosened)

• Make sure the intake tube is fully seated and not pinching any hoses/wires.
• Tighten the clamp(s) using a 7mm socket or flathead screwdriver until snug.

Step 8: Reconnect the electrical connector and battery

• Push the MAF connector on until it clicks.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. It may idle slightly different at first while it re-learns.
• Check that the intake tube is fully seated and there are no hissing sounds (an air leak).
• Use an OBD2 scan tool to clear any stored MAF-related codes and verify none return.
• Test drive for 10-15 minutes with a few gentle accelerations and re-check for a check-engine light.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $100-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
