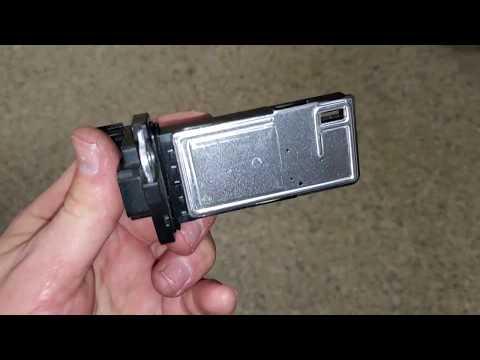

🔧 Camaro - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your Camaro’s engine so the computer can add the right amount of fuel. If it’s failing or contaminated, you can get rough idle, hesitation, or a check-engine light. This job is straightforward because the sensor is mounted in the air intake tube near the air box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from hot components.
• ⚠️ Turn ignition fully OFF and keep the key/fob away from the car while unplugging sensors.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to help the computer relearn cleanly.
• ⚠️ Do not touch the sensing element inside the MAF; it’s delicate and easily damaged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension
• 7mm socket
• Torx T20 driver
• Trim clip tool
• Shop towel
• Nitrile gloves
• Safety glasses
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Make sure the ignition is OFF and lights/accessories are OFF.
• Disconnect the negative battery cable using a 10mm socket. Negative is the “-” terminal.
• If you have an OBD2 scan tool, note any stored codes before you clear them (helpful for diagnosis).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the air intake tube running from the air box to the engine.
• The MAF is the small sensor with an electrical connector mounted in that tube, usually near the air box.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab by hand (or gently with a trim clip tool) and pull the connector straight off.
• Don’t pull on the wires.

Step 3: Remove the MAF sensor from the intake tube

• Remove the MAF retaining screws using a Torx T20 driver.
• Pull the sensor straight out of the tube. If it sticks, wiggle gently while pulling.
• Check that the old O-ring/seal came out with the sensor and is not stuck in the tube.

Step 4: Install the new MAF sensor

• Compare the new sensor to the old one (same shape and connector).
• Install the new MAF sensor O-ring/seal if it’s separate.
• Slide the sensor straight into the intake tube in the same orientation as the old one.
• Install the screws using a Torx T20 driver and tighten evenly.
• Torque to 3 Nm (27 in-lb)

Step 5: Reconnect the connector and recheck your work

• Push the connector on until it clicks/locks.
• Wipe around the area with a shop towel and confirm nothing is left in the intake tract.

Step 6: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Torque to 17 Nm (13 ft-lb)

Step 7: Clear codes (recommended) and verify the fix

• Use an OBD2 scan tool to clear any stored MAF-related codes.
• Start the engine and let it idle. Listen for air leaks (a hissing sound) around the intake tube.

---

✅ After Repair

• Let the engine idle for 2-3 minutes, then shut it off for 60 seconds, then restart and idle again for 2-3 minutes.
• Test drive gently for 10-15 minutes with a mix of steady cruising and light acceleration so the computer can relearn fuel trims.
• If the check-engine light returns, recheck the connector seating and the intake tube seal/clamps for unmetered air leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $90-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
