🔧 Camry - Mass Air Flow (MAF) Sensor Replacement

You’ll be removing the MAF sensor from the air intake duct on your Camry and installing a new one. This helps the engine computer measure incoming air correctly, which can fix rough running, poor fuel economy, or MAF-related check engine lights.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine off and completely cooled down to avoid burns.
• ⚠️ Disconnecting the battery will erase radio/clock settings but helps avoid accidental shorts.
• ⚠️ Do not touch the tiny sensing element on the MAF; it’s very delicate.
• ⚠️ Keep dirt and debris out of the air intake opening while the MAF is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 1/4" drive ratchet
• 🛠️ 3" ratchet extension
• 🛠️ Phillips #2 screwdriver
• 🛠️ Flathead screwdriver (6mm tip)
• 🛠️ Torx T20 screwdriver
• 🛠️ Needle-nose pliers
• 🛠️ Digital torque wrench (inch-lb, 20–100 in-lb range)
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses
• 🛠️ Clean shop towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Mass air flow (MAF) sensor - Qty: 1
• 🔩 MAF sensor gasket or O-ring - Qty: 1
• 🔩 MAF sensor mounting screws (if not included) - Qty: 2
• 🔩 Dielectric grease for electrical connectors - Qty: small tube
• 🔩 Electronic parts cleaner or MAF-safe cleaner - Qty: 1 can

---

📋 Before You Begin

• Park your Camry on level ground, shift to P, and set the parking brake.
• Open the hood and secure it with the prop rod.
• If you want to avoid any chance of short circuits, disconnect the negative battery cable:
  • Use a 10mm socket to loosen the negative terminal nut and remove the cable from the battery.
  • Wrap the terminal in a clean shop towel so it can’t accidentally touch the post.
• Have your new MAF sensor unboxed and ready so the intake is open for as little time as possible.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

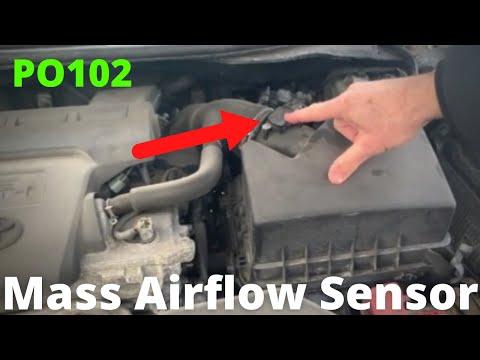

Step 1: Locate the MAF sensor

• Open the hood and stand at the front of the car.
• Find the air filter box on the driver’s side near the front corner.
• Trace the big black plastic tube that leaves the air box toward the engine.
• The MAF sensor is mounted in the housing right on or just after the air box, with a small electrical connector plugged into it.
• Look for a small rectangular sensor with a plug.

Step 2: Disconnect the MAF electrical connector

• Put on your mechanic’s gloves and safety glasses.
• Press the locking tab on the MAF connector with your fingers or use a flathead screwdriver gently if needed.
• While holding the tab down, pull the connector straight back to unplug it.
• If it’s stuck, wiggle it slightly while pulling—do not yank on the wires.
• If the tab feels brittle, press gently to avoid breaking.

Step 3: Free any harness clips

• Check if the wiring harness is clipped to the air duct or air box near the MAF.
• Use needle-nose pliers to gently squeeze and release any plastic clips from their holes so the harness can move freely.
• This gives you more room to remove and install the sensor.

Step 4: Remove the MAF sensor screws

• Look at how the MAF sensor is attached—on your Camry it’s usually two small screws.
• Use a Torx T20 screwdriver or Phillips #2 screwdriver (depending on head type) to loosen and remove both screws.
• Keep a hand under the sensor so it doesn’t drop when the last screw comes out.
• Place the screws in a safe spot so you don’t lose them.

Step 5: Remove the old MAF sensor

• Gently pull the MAF sensor straight out of the housing by hand.
• If it feels stuck, wiggle it slightly side to side while pulling—do not pry on the sensing element.
• Immediately cover the opening in the air duct with a clean shop towel so dust and bugs don’t get in.
• Never poke anything into the opening.

Step 6: Inspect and clean the mounting area

• Remove the shop towel and look inside the MAF opening and the sealing surface.
• If you see dust or oily film on the sealing area, lightly spray electronic parts cleaner on a shop towel and wipe the sealing surface only.
• Do not spray directly into the intake tube and do not spray the old sensor if you plan to keep it.
• Make sure the area is dry and free of debris before installing the new sensor.

Step 7: Prepare the new MAF sensor

• Compare the new sensor with the old one to confirm:
  • Same connector shape
  • Same mounting holes
  • Same direction of airflow markings (often an arrow)
• Install the new MAF sensor gasket or O-ring on the new sensor if it’s separate.
• If you use dielectric grease, put a very small amount on the rubber seal of the connector only, not on the pins.
• Match the airflow arrow with the direction air travels.

Step 8: Install the new MAF sensor

• Remove the shop towel from the intake opening.
• Carefully slide the new MAF sensor into the opening, keeping it straight and not twisting the O-ring.
• Align the screw holes on the sensor with the holes in the housing.
• Start both mounting screws by hand to avoid cross-threading.
• Use the Torx T20 screwdriver or Phillips #2 screwdriver to snug the screws evenly.
• Then use the digital torque wrench with the correct bit to tighten both screws to 9 Nm (80 in-lbs).
• Do not overtighten; the housing is plastic.

Step 9: Reconnect the electrical connector

• Align the MAF connector with the sensor plug.
• Push the connector straight in until you feel or hear a click.
• Lightly tug on the connector to confirm it’s locked in place.
• Reattach any wiring harness clips to their brackets by pushing them back in by hand.

Step 10: Reconnect the battery (if disconnected)

• Place the negative battery cable back onto the battery post.
• Use the 10mm socket and ratchet to tighten the terminal nut snugly—just firm, not overly tight.
• Make sure the cable cannot twist or move by hand.

Step 11: Let the engine relearn (idle relearn)

• Turn the ignition to ON (engine off) for about 10 seconds, then switch it off. This lets modules power up with the new sensor in place.
• Start the engine and let it idle in P for about 5–10 minutes with all accessories off (A/C, lights, radio).
• The engine computer will begin adapting to the new MAF sensor.
• Idle may change slightly while it relearns.

---

✅ After Repair

• Start the engine and listen for smooth idle. There should be no surging or stalling.
• Check around the MAF area and intake tube for any loose connections or air leaks.
• If you had a check engine light for the MAF, clear the code with a scan tool if available; otherwise, it may clear on its own after a few drive cycles.
• Take a short test drive:
  • Gentle acceleration first, then a few stronger accelerations.
  • Make sure there is no hesitation, stumbling, or new warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$400 (parts + labor)

DIY Cost: $120–$220 (parts only)

You Save: $130–$180 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
