🔧 Sienna - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your A/C intake so the engine computer can add the right amount of fuel. If it’s failing, you can get rough idle, hesitation, poor MPG, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool so you don’t burn your hands.
• ⚠️ Don’t touch the MAF sensing element (the tiny wires/film inside). It’s very fragile.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and unwanted fault codes.
• ⚠️ Keep dirt out of the intake tube while the sensor is out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension for 1/4" ratchet
• Flat-blade screwdriver
• Phillips #2 screwdriver
• Torx T20 security bit
• Inch-pound torque wrench (20-200 in-lbs)
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Open the hood and locate the air intake tube between the air filter box and the engine.
• Disconnect the battery negative terminal (the “-” cable). Use a 10mm socket to loosen the clamp and lift the cable off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the sensor mounted in the air intake tube right after the air filter box.
• It will have an electrical connector and usually two small mounting screws.

Step 2: Unplug the electrical connector

• Press the connector lock tab, then pull the connector straight off the sensor.
• If stuck, wiggle gently—don’t yank wires.
• Add a tiny dab of dielectric grease to the seal (optional) before reconnecting later.

Step 3: Loosen the intake tube for access (if needed)

• Loosen the hose clamp(s) near the sensor using a flat-blade screwdriver.
• If the air box snorkel/cover blocks access, remove any 10mm fasteners using a 10mm socket and 1/4" ratchet.
• Torque to 35 in-lbs (4.0 Nm) when re-tightening typical intake clamps/fasteners.

Step 4: Remove the MAF sensor screws

• Look at the screw heads and use the matching tool:
• Use a Phillips #2 screwdriver if they are Phillips-head screws.
• Use a Torx T20 security bit if they are tamper-resistant Torx (with a center pin).
• Remove both screws and set them aside.

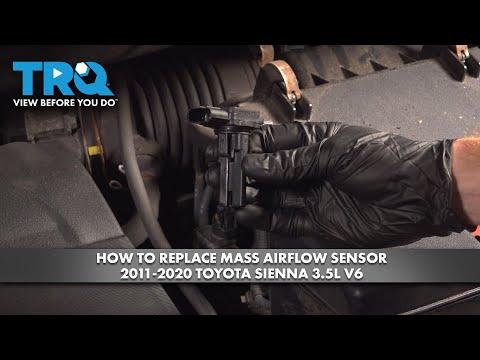

Step 5: Pull the MAF sensor out

• Pull the sensor straight out of the intake tube by the plastic housing.
• Make sure the old O-ring/seal comes out with it (sometimes it sticks in the tube).
• Don’t drop anything into the intake.

Step 6: Install the new MAF sensor

• Lightly seat the new O-ring/seal on the new sensor (or in the bore—match how the old one was).
• Insert the sensor straight in, fully seated and aligned with the screw holes.
• Install the two screws by hand first to avoid cross-threading.
• Use an inch-pound torque wrench (20-200 in-lbs) to tighten screws: Torque to 18 in-lbs (2.0 Nm).

Step 7: Reassemble the intake and reconnect

• Re-tighten any intake tube clamps using a flat-blade screwdriver: Torque to 35 in-lbs (4.0 Nm).
• Plug the connector back in until it clicks.
• Reconnect the negative battery cable using a 10mm socket: Torque to 48 in-lbs (5.5 Nm).

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. Idle may change briefly while the computer relearns.
• Check for a check engine light and listen for intake air leaks (a “hissing” sound).
• Do a short test drive with gentle acceleration, then recheck that clamps are tight.
• If the light stays on, scan for codes (a scan tool can confirm the fix and clear stored codes).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $80-$280 (parts only)

You Save: $100-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
