🔧 TITAN XD - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. If it’s failing, you can get rough idle, poor power, bad fuel mileage, or a check engine light. On your TITAN XD, it mounts in the air intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine to avoid burns.
• 🛑 Disconnect the negative battery terminal before unplugging sensors to prevent shorts and accidental fault codes.
• 🛑 Do not touch the sensing element inside the MAF; it’s fragile and oils from fingers can damage readings.
• 🛑 Keep dirt out of the intake tube; debris can damage the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 4" extension (1/4" drive)
• Torx T20 security bit
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• Torque wrench (inch-pound)
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring / seal (if not included with sensor) - Qty: 1
• MAF sensor electrical connector dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧤 Put on safety glasses and nitrile gloves.
• 🔋 Disconnect the battery: use a 10mm socket and ratchet to remove the negative (-) terminal and tuck it aside so it can’t spring back.
• Tip: Take a quick phone photo of connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

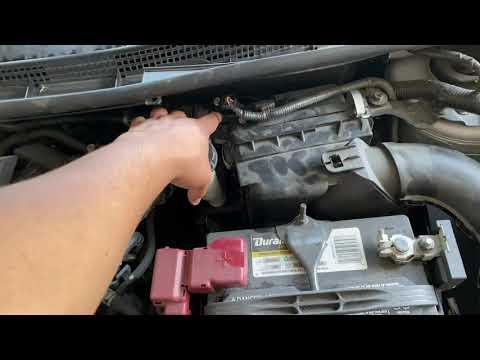

Step 1: Locate the MAF sensor

• Open the hood and find the air filter box and the large intake tube going toward the engine.
• The MAF sensor is the small module with an electrical connector mounted in the intake tube near the air box.
• Use a shop towel to wipe loose dirt around the area so it can’t fall into the intake.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off the sensor.
• If it’s stuck, use a small flat-blade screwdriver to gently lift the lock tab (don’t pry hard).
• Apply a tiny amount of dielectric grease to the connector seal (optional) to help keep moisture out.

Step 3: Remove the MAF sensor mounting screws

• Remove the two MAF screws using either a Torx T20 security bit or a Phillips #2 screwdriver (your sensor will use one of these head styles).
• Keep the screws safe; they’re easy to drop.

Step 4: Remove the MAF sensor from the intake tube

• Carefully pull the sensor straight out of the intake tube.
• If it feels stuck, wiggle gently while pulling—do not twist hard.
• Check for an O-ring/seal on the sensor. Remove any old seal left behind.
• Tip: Never spray cleaners into the open intake.

Step 5: Install the new MAF sensor

• Lightly seat the new O-ring/seal (if used) so it sits flat and won’t pinch.
• Insert the new sensor straight into the intake tube in the same orientation as the old one.
• Install the screws by hand first to avoid cross-threading.
• Tighten screws using a torque wrench (inch-pound): Torque to 3.5 Nm (31 in-lb).

Step 6: Reconnect the electrical connector

• Push the connector on until it clicks.
• Gently tug the connector to confirm it’s locked.

Step 7: Reconnect the battery

• Reconnect the negative (-) terminal using a 10mm socket and ratchet.
• Tighten snug (do not over-tighten and crack the terminal).

---

✅ After Repair

• 🚗 Start the engine and let it idle for 2-3 minutes. Idle should be stable.
• 🔎 Check that the intake tube is seated properly and nothing is loose.
• 🧰 If a check engine light was on, use an OBD2 scan tool to clear codes and confirm none return after a short test drive.
• Tip: If symptoms remain, check for intake air leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $100-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: Stock intake system (no aftermarket cold-air intake).
