🔧 Murano - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air your engine is breathing so the computer can add the right amount of fuel. When it fails or gets contaminated, you can get rough idle, hesitation, poor fuel economy, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to protect the sensor circuit.
• ⚠️ Never touch the sensing elements inside the MAF opening; skin oils can damage readings.
• ⚠️ Do not use brake cleaner or carb cleaner on the MAF; only MAF-safe cleaner if cleaning nearby parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Phillips #2 screwdriver
• Torx T20 bit
• Trim clip tool
• Inch-pound torque wrench (specialty)
• OBD-II code reader (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal (if applicable) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔋 Disconnect the negative battery terminal using a 10mm socket. (Negative terminal is the one marked “-”.)
• 🧠 Take a quick photo of the connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

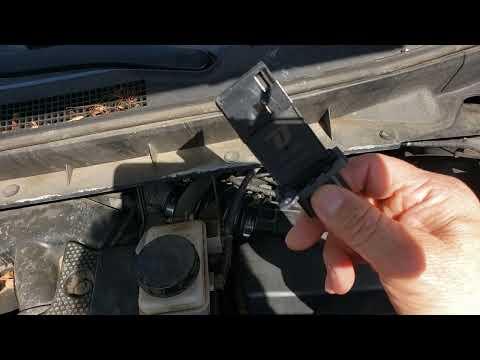

Step 1: Locate the MAF sensor

• Open the hood and find the air intake tube coming from the air filter box.
• The MAF sensor is mounted in the intake tube/air duct just after the air box, with an electrical connector plugged into it.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off the sensor.
• If it’s stubborn, use a trim clip tool gently at the tab (don’t pry on the wires).
• Optional: Apply a tiny amount of dielectric grease later to the seal area only (dielectric grease is a non-conductive grease that helps keep moisture out).

Step 3: Remove the MAF sensor retaining screws

• Remove the two retaining screws using a Phillips #2 screwdriver.
• If your screws are Torx instead of Phillips, use a Torx T20 bit with a 1/4" ratchet and 6" extension (1/4").
• Set the screws somewhere safe so they don’t fall into the engine bay.

Step 4: Remove the MAF sensor

• Pull the sensor straight out of the housing.
• Remove and inspect the O-ring seal (if equipped). Replace it if it’s flattened, cracked, or missing.
• Do not drop the sensor—it's delicate.

Step 5: Install the new MAF sensor

• Make sure the O-ring (if used) is seated correctly and lightly clean the bore if dusty (use a clean, dry cloth only).
• Slide the new sensor in fully and evenly (do not force it).
• Reinstall the two screws and tighten evenly.
• Use an inch-pound torque wrench (specialty): Torque to 22-30 in-lb (2.5-3.4 N·m).

Step 6: Reconnect the electrical connector and battery

• Push the connector onto the sensor until it clicks.
• Reconnect the negative battery terminal using a 10mm socket. Tighten snug (do not overtighten the clamp).

---

✅ After Repair

• 🔎 Double-check the connector is fully seated and the intake tube is not loose or cracked near the sensor.
• 🧰 Plug in an OBD-II code reader (specialty) (a small scanner that reads/clears check-engine codes) and clear any stored MAF-related codes.
• 🚗 Start the engine and let it idle for 2-3 minutes. Then take a 10-15 minute test drive with gentle acceleration.
• ✅ If the idle hunts or stalls after replacement, recheck for an air leak at the air box/intake tube connections.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $110-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
