🔧 GLC300 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures the air entering your engine so the computer can deliver the right amount of fuel. A failing MAF can cause rough idle, hesitation, poor fuel economy, and a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Your GLC300 uses a MAF mounted in/near the air intake tube at the air box outlet (common setup on this engine).

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the turbo/intake area.
• ⚠️ Disconnect the negative battery terminal to prevent accidental shorts and avoid setting extra faults.
• ⚠️ Do not touch the sensor element inside the MAF; it’s delicate and can be damaged easily.
• ⚠️ Keep dirt out of the intake tube; anything that falls in can damage the turbo/engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Flathead screwdriver
• Torx T20 bit
• Torx T25 bit
• Trim clip tool
• Torque wrench (inch-pound, 20–200 in-lb)
• Nitrile gloves
• Safety glasses
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included) - Qty: 1
• Electrical contact cleaner (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition fully OFF.
• Open the hood and remove any plastic engine cover if it blocks access (it typically pulls straight up; use a trim clip tool if needed).
• Disconnect the battery negative terminal using a 10mm socket and isolate the cable so it can’t spring back.
• Locate the MAF: follow the air box outlet into the intake tube toward the turbo inlet; the MAF will be an electrical sensor mounted in the tube/air box outlet area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

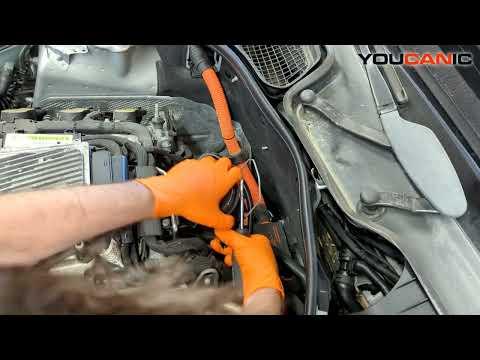

Step 1: Expose the intake tube and MAF

• Use a shop light to clearly see the air box outlet and intake tube.
• If a cover/duct is in the way, remove fasteners using a Torx T20 bit or Torx T25 bit (varies by panel).

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull straight off the sensor.
• If it’s stubborn, use a trim clip tool gently to help lift the locking tab.
• Tip: Pull on the connector, not the wires.

Step 3: Remove the MAF sensor

• Remove the MAF mounting screws using a Torx T20 bit (common on this style of sensor).
• Carefully twist and lift the sensor out of the housing/tube.
• Remove the old O-ring/seal if it stayed behind, using a trim clip tool gently.
• Tip: Cover the opening with a clean glove to block dirt.

Step 4: Install the new MAF sensor

• Lightly seat the new O-ring/seal (do not over-oil it; install dry unless the seal instructions say otherwise).
• Insert the new MAF straight into place without forcing it.
• Install and tighten the screws using a Torx T20 bit.
• Torque to 3 Nm (27 in-lb)

Step 5: Reconnect and reassemble

• Reconnect the electrical connector until it clicks.
• Reinstall any ducts/covers you removed using a Torx T20 bit or Torx T25 bit.
• If you loosened any intake hose clamps, snug them with a flathead screwdriver and do not overtighten.

Step 6: Reconnect the battery

• Reconnect the battery negative terminal using a 10mm socket.
• Tighten securely (do not strip the terminal clamp).

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. Listen for hissing (an intake leak).
• If the check-engine light was on, clear codes with a scan tool. (A scan tool is the plug-in code reader used at the diagnostic port.)
• Take a short test drive and confirm smooth acceleration and normal shifting.
• Recheck that the connector is fully latched and clamps are snug if any symptoms remain.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $170-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
