🔧 ES350 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters the engine so the computer can fuel it correctly. If it’s dirty or failing, you can get rough idle, hesitation, poor fuel economy, or a check engine light. On your ES350, it’s mounted in the air intake tube/air box area and is a quick swap.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine off and cool to avoid burns.
• ⚠️ Do not touch the sensor’s sensing wires/film inside the opening; skin oils can ruin readings.
• ⚠️ Keep dirt out of the intake tube; anything that falls in can cause engine damage.
• ⚠️ Battery disconnect is not strictly required, but disconnecting the negative terminal prevents accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torque wrench (inch-pound)
• Torx T20 security bit
• Phillips #2 screwdriver
• Trim clip tool
• Nitrile gloves
• Safety glasses
• Battery terminal wrench (10mm)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose items near the air box area.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.
• Assumption: Your MAF is held by 2 screws (T20 security or Phillips).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the air filter box and the large black intake tube coming off it.
• The MAF is the small module with an electrical connector, usually mounted on the intake tube right after the air box.

Step 2: Unplug the MAF electrical connector

• Use your fingers (or a trim clip tool gently) to press the connector lock tab and pull the connector straight off.
• If it’s stuck, wiggle slightly while pulling—don’t yank on the wires.

Step 3: Remove the MAF retaining screws

• Use a Torx T20 security bit to remove the 2 screws.
• If your screws are Phillips instead, use a Phillips #2 screwdriver.
• Set the screws somewhere safe so they don’t drop into the engine bay.

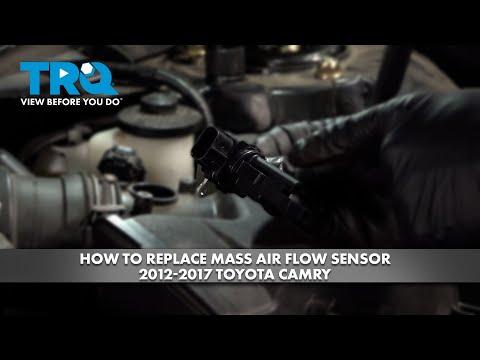

Step 4: Remove the MAF sensor from the intake tube

• Pull the sensor straight out by the plastic housing.
• Remove the old O-ring/seal if it stayed in the intake tube.
• Tip: Cover the opening with a clean glove.

Step 5: Install the new MAF sensor

• Lightly seat the new O-ring/seal (if separate) onto the new sensor or into the groove.
• Insert the new sensor straight in. It should sit flush without forcing.
• Reinstall the 2 screws by hand first to avoid cross-threading.
• Use a torque wrench (inch-pound) to tighten evenly: Torque to 3.0 Nm (27 in-lbs).

Step 6: Reconnect the connector and battery (if disconnected)

• Push the electrical connector on until it clicks.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 2 minutes. The idle may fluctuate briefly while it relearns.
• Check that the connector is fully seated and that no warning lights appear.
• Take a 10–15 minute test drive with gentle acceleration.
• If you had a check engine light, clear codes with a scan tool (optional) and confirm they do not return.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $120-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
