🔧 Rio - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your Rio’s engine so the computer can add the right amount of fuel. A bad MAF can cause rough idle, hesitation, poor MPG, or a check-engine light. Replacement is straightforward because it sits in the air intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns around the intake and radiator area.
• ⚠️ Turn the ignition OFF and keep the key away from the car while unplugging sensors.
• ⚠️ Optional but recommended: disconnect the negative battery cable to prevent accidental shorts and reduce chances of setting new fault codes.
• ⚠️ Do not touch the MAF sensing element inside the sensor—it’s delicate and can be ruined by contact.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Flathead screwdriver
• Phillips screwdriver
• Torx T20 screwdriver
• Trim clip removal tool
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses
• OBD2 scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring / seal - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, and set the parking brake.
• Open the hood and locate the air filter box and intake tube going to the engine.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take a quick photo of the connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Your Rio’s MAF is mounted in the intake duct by the air box with 2 small screws (Phillips or Torx). If yours is secured differently, match the steps to what you see.

Step 1: Locate the MAF sensor

• Find the air filter box at the front/side of the engine bay.
• Look along the plastic/rubber intake tube leaving the air box—find the sensor with an electrical connector (this is the MAF).

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the plug straight off.
• If it’s stubborn, use a trim clip removal tool gently to help lift the lock tab.
• Pull on the plug, not the wires.

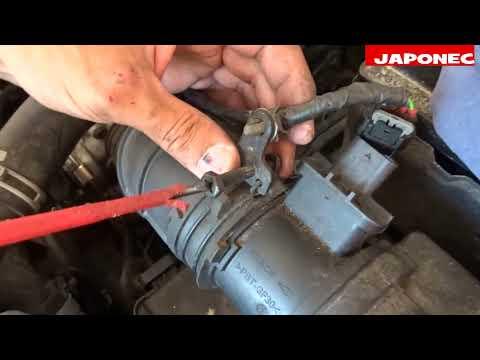

Step 3: Loosen the intake tube if you need more room

• Use a flathead screwdriver to loosen the hose clamp(s) on the intake tube near where you’re working.
• If there are small brackets holding the tube/air box snorkel, remove them using a 10mm socket and 1/4" drive ratchet.

Step 4: Remove the MAF sensor

• Remove the two MAF mounting screws using a Phillips screwdriver or Torx T20 screwdriver (use whichever matches your screws).
• Pull the MAF sensor straight out of the intake housing.
• Remove the old seal if it stays behind, using a trim clip removal tool.

Step 5: Install the new MAF sensor

• Lightly seat the new MAF sensor O-ring / seal onto the sensor (or into the bore, depending on design) using gloved fingers.
• Insert the new sensor straight in—do not force it or twist hard.
• Install the mounting screws by hand first, then tighten using a Phillips screwdriver or Torx T20 screwdriver.
• Finish tightening with an inch-pound torque wrench: Torque to 2.5 Nm (22 in-lbs).

Step 6: Reassemble the intake tube and reconnect the sensor

• Re-seat the intake tube fully on its fittings, then tighten clamps using a flathead screwdriver.
• Reinstall any brackets/bolts using a 10mm socket, 3" extension, and 1/4" drive ratchet.
• Plug the connector back in until it clicks.

Step 7: Reconnect the battery (if disconnected)

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. The idle may hunt briefly while the computer relearns airflow.
• Check that there are no intake air leaks (hissing sound) and that the intake tube isn’t loose.
• If the check-engine light is on, use an OBD2 scan tool (specialty) to clear codes and confirm none return. (An OBD2 scan tool is a small device that reads/clears engine codes through the diagnostic port under the dash.)
• Test drive 10-15 minutes with gentle acceleration and confirm smooth response.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $120-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
