🔧 Grand Caravan - Mass Air Flow (MAF) Sensor Replacement

On your Grand Caravan, the MAF sensor measures how much air is entering the engine so the computer can add the right amount of fuel. If it’s failing or dirty, you can get rough idle, hesitation, poor MPG, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from hot parts.
• ⚠️ Keep keys out of the ignition while unplugging sensors.
• ⚠️ Disconnecting the battery is recommended to prevent setting extra faults.
• ⚠️ Do not touch the sensing element inside the MAF; it’s very delicate.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" drive ratchet
• 6" 1/4" drive extension
• Flathead screwdriver (medium)
• Torx T20 screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Torque wrench (inch-pound, 20–200 in-lb)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Disconnect the negative battery terminal using an 8mm socket and 1/4" drive ratchet.
• Take a quick photo of hose routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the air intake tube between the air filter box and the throttle body (the large tube going to the engine).
• The MAF sensor is mounted in the intake duct/airbox area and has an electrical connector plugged into it.

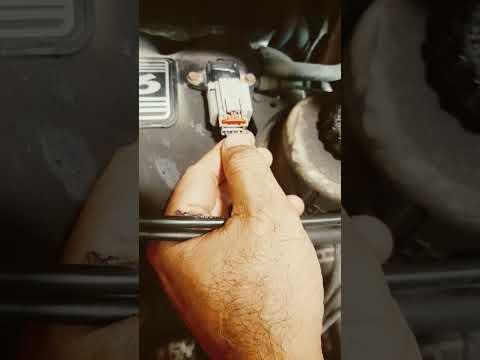

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a flathead screwdriver (medium) gently to help lift the lock tab.
• Spray a small amount of electrical contact cleaner into the connector and let it air dry.

Step 3: Loosen the intake tube as needed

• Use an 8mm socket with a 1/4" drive ratchet and 6" 1/4" drive extension to loosen the hose clamp(s) near the sensor area.
• If any small hoses are attached, carefully remove spring clamps with needle-nose pliers.
• Move the intake tube slightly to give yourself room (you usually don’t need to remove the whole tube).

Step 4: Remove the MAF sensor from the housing

• Remove the MAF retaining screws using a Torx T20 screwdriver.
• Pull the MAF sensor straight out. If it’s snug, wiggle gently while pulling—don’t pry on the plastic.
• Remove the old MAF sensor O-ring seal if it stays in the housing.

Step 5: Install the new MAF sensor

• Lightly seat the new MAF sensor O-ring seal on the sensor (or in the housing, whichever matches your part).
• Insert the new MAF sensor straight in, keeping it aligned so the O-ring doesn’t pinch.
• Install and tighten the screws using a Torx T20 screwdriver.
• Final tighten with an inch-pound torque wrench: Torque to 4 Nm (35 in-lb).

Step 6: Reassemble the intake tube and reconnect wiring

• Reposition the intake tube fully onto its fittings.
• Tighten the hose clamp(s) using an 8mm socket and 1/4" drive ratchet.
• Reconnect any small hoses and spring clamps using needle-nose pliers.
• Plug the MAF connector back in until it clicks.

Step 7: Reconnect the battery

• Reconnect the negative battery terminal using an 8mm socket and 1/4" drive ratchet.
• Make sure the terminal is snug and doesn’t rotate by hand.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes.
• Listen for air leaks (a hissing sound) around the intake tube and clamps.
• Take a 10-minute test drive with gentle acceleration and steady cruising.
• If the check-engine light was on, it may clear after a few drive cycles; a scan tool can clear it immediately.
• If it runs worse, recheck intake clamps first.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $120-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
