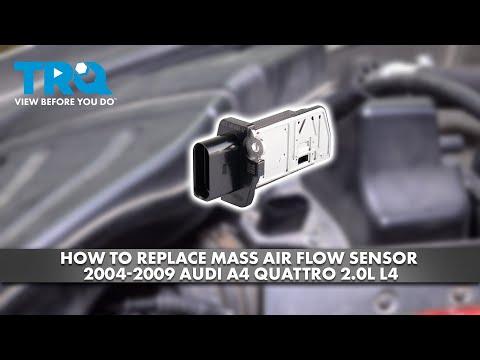

🔧 Q3 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can deliver the correct fuel. A dirty or failing MAF can cause rough idle, hesitation, poor fuel economy, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: MAF is mounted in the intake tube at the airbox outlet with Torx screws.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot turbo/intake parts can burn you.
• ⚠️ Turn ignition fully OFF and keep the key away from the vehicle.
• ⚠️ Avoid touching the MAF sensing element; it’s very delicate.
• ⚠️ Battery disconnect is recommended to prevent fault codes: disconnect negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 driver
• 7mm socket
• 1/4" ratchet
• 1/4" extension (3"-6")
• Small flathead screwdriver
• Torque wrench (inch-pound capable)
• Trim clip remover
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• If disconnecting the battery: use a 10mm socket to loosen the negative terminal and move it aside so it can’t spring back. (The negative terminal is the “-” side.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the intake tube and MAF sensor

• Remove any plastic engine cover if equipped. Use a trim clip remover if there are push clips.
• Locate the airbox and the large intake tube leaving the airbox toward the turbo inlet. The MAF sensor is typically installed in this tube and has an electrical connector.

Step 2: Unplug the MAF electrical connector

• Press the connector locking tab and pull the connector straight off.
• If it’s stubborn, use a small flathead screwdriver gently to help lift the lock. Don’t pry on the wires.

Step 3: Loosen the intake tube clamp (if it blocks removal)

• Use a 7mm socket with a 1/4" ratchet to loosen the hose clamp near where the MAF sits.
• Slide the tube back just enough to give you clear access to the MAF sensor screws.
• When reinstalling later: Torque to 5 Nm (44 in-lbs).

Step 4: Remove the MAF sensor

• Use a Torx T20 driver to remove the MAF retaining screws.
• Gently wiggle and pull the MAF straight out of the intake tube.
• Remove the old MAF O-ring/seal if it stayed in the housing.

Step 5: Install the new MAF sensor

• Lightly seat the new MAF O-ring/seal on the sensor (or in the bore, depending on design).
• Insert the new sensor straight in. Do not force it; it should slide in smoothly.
• Install the screws by hand first to avoid cross-threading, then tighten using the Torx T20 driver.
• Torque to 3 Nm (27 in-lbs).

Step 6: Reassemble the intake and reconnect electrical

• Reposition the intake tube and tighten the clamp using a 7mm socket. Torque to 5 Nm (44 in-lbs).
• Reconnect the MAF electrical connector until it clicks.
• Reinstall any engine cover you removed.

Step 7: Reconnect the battery (if disconnected)

• Reconnect the negative battery terminal and tighten using the 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should idle smoothly.
• Take a short test drive and confirm there is no hesitation on light acceleration.
• If the check-engine light was on, it may clear after a few drive cycles; otherwise, clearing codes with a scan tool is recommended.
• Recheck the intake tube clamp area for any hissing/air leak sound.

---

💰 DIY vs Shop Cost

Shop Cost: ₹9,000-₹22,000 (parts + labor)

DIY Cost: ₹6,000-₹18,000 (parts only)

You Save: ₹3,000-₹4,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
