🔧 A3 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. A failing MAF can cause rough idle, hesitation, poor MPG, or a check engine light. On your A3, the MAF is mounted in the intake tube right next to the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your A3 uses a bolt-in MAF on the airbox outlet/intake tube.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Do not touch the MAF sensing element (the tiny wire/film inside); it is very delicate.
• ⚠️ Keep dirt out of the intake tube; cover openings if you step away.
• ⚠️ Battery disconnect is not strictly required, but it helps prevent accidental shorts and unwanted fault codes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" ratchet
• 6" extension
• Torx T20 screwdriver
• Flat-blade screwdriver (small)
• Hose clamp pliers
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose jewelry/strings that could snag.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

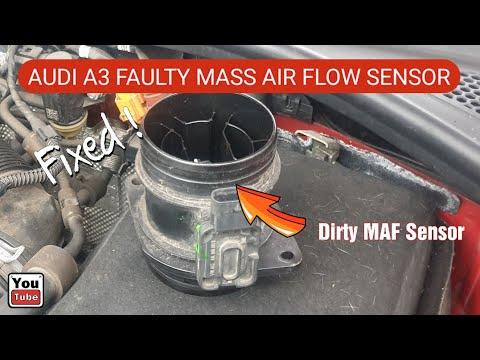

Step 1: Locate the MAF sensor

• Use a flashlight to find the air filter box and the intake tube coming out of it toward the turbo inlet.
• Look for a small rectangular sensor with an electrical connector—this is the MAF.

Step 2: Remove the engine cover (if equipped)

• Pull straight up on the cover by hand; if it uses fasteners, remove them with a 10mm socket.
• Pull evenly from both sides.

Step 3: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a flat-blade screwdriver (small) to gently help the lock release (do not pry hard).
• Add a tiny amount of dielectric grease to the seal area of the connector (optional) before reinstalling later.

Step 4: Free up the intake tube for access

• Loosen the intake tube clamp at the airbox/MAF area using a flat-blade screwdriver (small).
• If there are any hose spring clamps on nearby small lines, squeeze and slide them back using hose clamp pliers.
• If an intake duct/snorkel is clipped in, release it with a trim clip removal tool.

Step 5: Remove the MAF sensor

• Remove the MAF mounting screws using a Torx T20 screwdriver.
• Carefully pull the sensor straight out of the housing.
• Remove and discard the old MAF sensor O-ring/seal if it stayed behind.
• Do not twist the sensor aggressively.

Step 6: Install the new MAF sensor

• Install the new MAF sensor O-ring/seal onto the new sensor (or into the housing, depending on design).
• Slide the new sensor straight into place, making sure it seats evenly.
• Install the screws using a Torx T20 screwdriver.
• Torque to 3 Nm (27 in-lbs)

Step 7: Reassemble the intake tube and clamps

• Reposition the intake tube fully onto the MAF/airbox outlet.
• Tighten the clamp using a flat-blade screwdriver (small) until snug (do not overtighten and crack plastic).
• Reinstall any small hoses and move spring clamps back in place using hose clamp pliers.

Step 8: Reconnect electrical and battery

• Plug the connector back into the MAF until it clicks.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket.

Step 9: Reinstall the engine cover

• Press the cover down onto its grommets by hand, or reinstall fasteners with a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; listen for hissing (an air leak) around the intake tube.
• If the check engine light was on, clear codes with a scan tool (recommended) and re-check for returning codes after a short drive.
• Test drive 10-15 minutes: light throttle, then moderate throttle. Confirm smooth acceleration and stable idle.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
