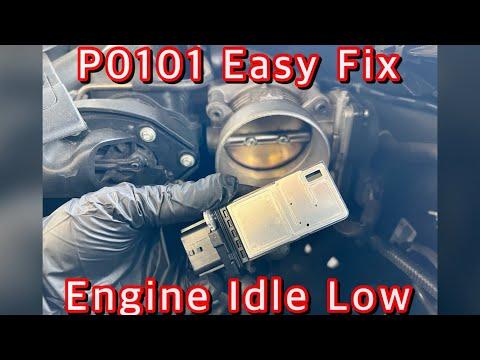

🔧 Maxima - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air your Maxima’s engine is breathing so the computer can meter fuel correctly. If it fails (or reads wrong), you can get rough idle, hesitation, poor fuel economy, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot intake parts can burn you.
• ⚠️ Keep dirt out of the intake tube; don’t drop screws into it.
• ⚠️ Don’t touch the MAF sensing element (tiny wire/film) with fingers or tools.
• ⚠️ Battery disconnect: Recommended—disconnect the negative terminal to avoid setting faults and to prevent accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4")
• Flat-head screwdriver
• Phillips #2 screwdriver
• Torx T20 driver
• Torx T20 security driver
• Trim clip tool
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor seal/O-ring (if not included with sensor) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your Maxima on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air intake tube between the air box and the engine.
• Disconnect the negative battery terminal using a 10mm socket. (Negative is the “-” terminal.)
• Tip: Take a quick photo before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Look for the sensor mounted in the intake duct/air box outlet, with an electrical connector and usually two small screws.
• Use a flashlight (phone light is fine) to confirm screw type: Phillips, Torx, or security Torx (pin in the center).

Step 2: Unplug the electrical connector

• Press the connector lock tab by hand (or gently with a flat-head screwdriver) and pull the connector straight off.
• If you’re using it, apply a tiny dab of dielectric grease to the connector seal only (it helps prevent moisture; don’t pack the terminals).

Step 3: Remove the MAF sensor from the intake

• Remove the two retaining screws using the tool that matches your screws: Phillips #2 screwdriver, Torx T20 driver, or Torx T20 security driver.
• Carefully pull the MAF sensor straight out. If it feels stuck, gently wiggle—don’t pry hard against plastic.
• Inspect the seal/O-ring. Replace it if it’s torn, flattened, or missing.

Step 4: Install the new MAF sensor

• Insert the new sensor straight into the housing in the same orientation as the old one.
• Start both screws by hand first to avoid cross-threading.
• Tighten the screws evenly using your screwdriver/driver.
• Torque: Tighten the MAF screws to the factory specification for your Maxima. Use a torque wrench (inch-pound) if available. Tip: Plastic housings crack easily.

Step 5: Reconnect everything

• Plug the connector back in until it clicks.
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start your Maxima and let it idle for 2-3 minutes. Listen for air leaks (a hissing sound) around the intake tube/air box.
• If you had a check engine light, clear codes with a scan tool and confirm the MAF reading looks normal at idle.
• If idle is unstable after replacement, perform Idle Air Volume Learning using a scan tool that supports Nissan procedures (this “re-teaches” the idle airflow after parts changes).
• Test drive 10-15 minutes and recheck for warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
