🔧 NX - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. A failing or dirty MAF can cause rough idle, hesitation, poor mileage, or a check engine light. On your NX, it’s mounted in the intake tube/air cleaner outlet and is a quick swap.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; the turbo/intake area can get very hot.
• ⚠️ Keep the key OFF while unplugging the MAF to avoid setting fault codes.
• ⚠️ Do not touch the sensing element inside the MAF; it’s delicate.
• ⚠️ If you disconnect the battery, you may lose radio presets and idle may relearn for a short drive.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torx T20 driver
• Small flat trim tool
• Inch-pound torque wrench (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included) - Qty: 1
• Engine air filter (optional, if dirty) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the ignition fully OFF and keep the key fob away from the vehicle.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take a quick photo of the connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Open the hood and find the air filter box and the large intake tube leading toward the engine.

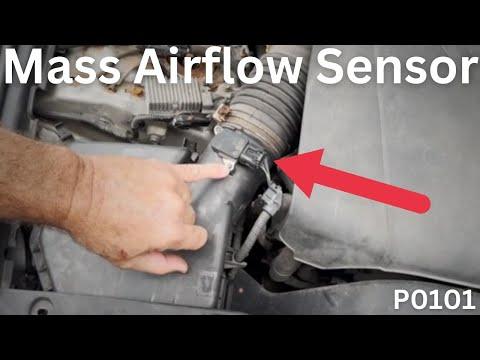

• The MAF is the small sensor with an electrical connector mounted in the intake tube/air cleaner outlet near the air box.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off the sensor.
• If it’s stubborn, use a small flat trim tool to gently help lift the lock tab while pulling.

Step 3: Remove the MAF mounting screws

• Use a Torx T20 driver to remove the two MAF screws.
• Keep the screws somewhere safe; they’re easy to drop.

Step 4: Remove the MAF sensor from the housing

• Pull the sensor straight out of the intake tube.
• If it sticks, gently wiggle while pulling—do not pry hard on the plastic housing.
• Check whether an O-ring/seal came out with the sensor or stayed in the housing.

Step 5: Install the new MAF sensor

• Compare old vs new so the connector and mounting holes match.
• Lightly seat the O-ring/seal (if used) and slide the new sensor straight in until fully seated.
• Install the screws by hand first to avoid cross-threading, then tighten with a Torx T20 driver.
• Use an inch-pound torque wrench (specialty) (a small torque wrench for low torque fasteners) and Torque to 2.0 Nm (18 in-lbf).
• Do not overtighten—intake housing is plastic.

Step 6: Reconnect the electrical connector

• Push the connector onto the MAF until it clicks.
• Gently tug to confirm it’s locked.

Step 7: Reconnect battery (if disconnected)

• Reinstall the negative battery terminal using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. The idle may fluctuate briefly while it relearns.
• Check that the check engine light stays off and that throttle response feels normal.
• Take a short 10–15 minute drive with mixed speeds, then recheck for warning lights.
• If a light comes on, scan for codes and re-check the connector seating and the O-ring seal.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $130-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
