🔧 CX-5 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can set the correct fuel mixture. If it fails or reads incorrectly, you can get rough idle, hesitation, poor fuel economy, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; the intake area can get hot.
• ⚠️ Turn the ignition OFF and keep the key away from the vehicle while unplugging sensors.
• ⚠️ If you disconnect the battery, you may lose radio presets and clock settings.
• ⚠️ Never touch the sensing element inside the MAF; it’s delicate.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torx T20 screwdriver
• Phillips #2 screwdriver
• Small flat trim tool
• Shop towel
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor seal/O-ring (if equipped) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.

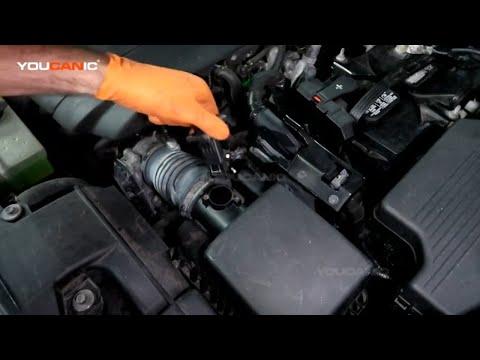

• Locate the MAF sensor on the air intake tube/air cleaner housing near the air filter box (it has an electrical connector).
• If you want the safest approach: disconnect the negative battery cable using a 10mm socket. This prevents accidental shorts.
• Use either a Torx T20 screwdriver or Phillips #2 screwdriver depending on the screw head on your MAF.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery (recommended)

• Use a 10mm socket with a 1/4" ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off the sensor.
• If it’s stubborn, use a small flat trim tool to gently help the tab (do not pry hard on the sensor).
• Pull on the connector, not the wires.

Step 3: Remove the MAF mounting screws

• Use a Torx T20 screwdriver or Phillips #2 screwdriver (whichever matches your screws) to remove the two MAF screws.
• Set the screws somewhere safe so they don’t fall into the engine bay.

Step 4: Remove the MAF sensor from the housing

• Gently wiggle and pull the sensor straight out of the air tube/housing.
• Use a shop towel to cover the opening so nothing drops inside.
• Check whether an O-ring/seal stayed on the sensor or in the housing and remove it if you’re replacing it.

Step 5: Install the new MAF sensor

• Compare the new sensor to the old one to ensure the connector and mounting ears match.
• If equipped, lightly seat the new MAF sensor seal/O-ring on the sensor.
• Slide the new sensor into the housing fully and evenly (no force).

Step 6: Reinstall screws and tighten

• Start both screws by hand to avoid cross-threading.
• Tighten using a Torx T20 screwdriver or Phillips #2 screwdriver.
• Torque to 2.0 Nm (18 in-lbs)

Step 7: Reconnect the electrical connector

• Optional: apply a tiny amount of dielectric grease to the connector seal (not the metal pins).
• Push the connector on until it clicks.

Step 8: Reconnect the battery

• Reinstall the negative battery cable and tighten with a 10mm socket.
• Snug it so it doesn’t rotate by hand on the post.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes.
• Check that idle is smooth and the engine doesn’t stumble when you lightly rev it.
• Take a short test drive (10-15 minutes) with a mix of gentle acceleration and steady cruising so the computer can relearn airflow.
• If the check engine light stays on, the code may need clearing (or there may be an intake air leak elsewhere).

---

💰 DIY vs Shop Cost

Shop Cost: $200-$350 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $140-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
