🔧 Malibu - Mass Air Flow (MAF) Sensor Replacement

Your Malibu’s MAF sensor measures how much air is entering the engine so the computer can add the right amount of fuel. A bad or dirty MAF can cause rough idle, poor acceleration, stalling, and a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧤 Let the engine cool before working near the turbo/intake piping.
• 🔌 Disconnect the negative battery cable to prevent accidental shorts and to protect the sensor electronics.
• 🧼 Never touch the sensing element inside the MAF; skin oil can damage readings.
• 🚫 Do not use brake cleaner/carb cleaner on a MAF (only MAF-safe cleaner if cleaning, not replacing).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 1/4" ratchet
• 6" extension (1/4" drive)
• 7mm socket
• Torx T20 bit
• Small flathead screwdriver
• Inch-pound torque wrench (20–200 lb-in range)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor seal/O-ring (if not included) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park your Malibu on level ground and shift to Park.
• Open the hood and keep loose clothing away from the serpentine belt area.
• Use a 10mm wrench to disconnect the negative battery cable and isolate it so it can’t spring back.
• Take a quick photo of the connector first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the air intake tube between the air filter box and the turbo inlet.
• The MAF sensor is the small module with an electrical connector mounted in the intake tube.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, gently help the lock with a small flathead screwdriver (don’t pry on the sensor body).
• Pull on the connector, not the wires.

Step 3: Remove anything blocking access (if needed)

• If the intake tube or engine cover blocks access, loosen the intake clamp(s) with a 7mm socket, using a 1/4" ratchet and 6" extension.
• Move the tube just enough to reach the MAF screws—no need to fully remove everything in most cases.

Step 4: Remove the MAF sensor mounting screws

• Most Malibu setups use Torx T20 bit screws (Torx is a star-shaped screw head).
• Some replacements/aftermarket housings may use a small hex-head screw instead—use a 7mm socket if yours is hex.
• Remove both screws and set them somewhere safe.

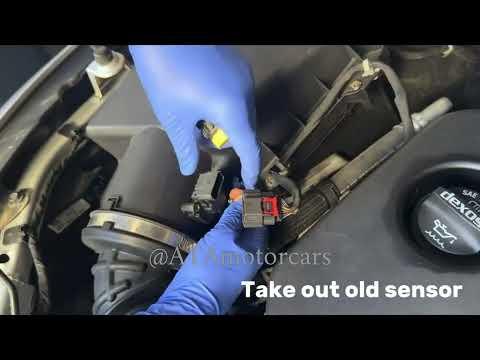

Step 5: Remove the old MAF sensor

• Pull the sensor straight out of the intake tube by hand.
• If it feels stuck, wiggle gently while pulling—do not twist hard.
• Remove the old seal/O-ring if it stayed in the tube.

Step 6: Install the new MAF sensor

• Compare the new sensor to the old one to confirm the connector and shape match.
• Install the new seal/O-ring if provided.
• Slide the new sensor straight into place. Make sure it sits flat and fully seated.
• Install the screws by hand first to avoid cross-threading.
• Use an inch-pound torque wrench (20–200 lb-in range) with a Torx T20 bit (or 7mm socket) and Torque to 18 lb-in (2 N·m).
• These screws strip easily—go light.

Step 7: Reinstall/retighten the intake tube (if loosened)

• Position the intake tube back exactly where it was.
• Use a 7mm socket with a 1/4" ratchet to tighten the clamp(s) securely (snug, not crushing the tube).
• Double-check there are no gaps that could cause an air leak.

Step 8: Reconnect the MAF connector and battery

• Push the electrical connector on until it clicks.
• If using it, apply a tiny amount of dielectric grease to the connector seal (not on metal pins).
• Reconnect the negative battery cable using a 10mm wrench (tighten snug).

---

✅ After Repair

• Start your Malibu and let it idle for 2–3 minutes. Listen for hissing (a sign of an intake air leak).
• If you had a check-engine light, clear codes with a scan tool, then test drive 10–15 minutes.
• Watch for symptoms like surging, stalling, or a returning check-engine light—these can also point to an intake leak or wiring issue.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $100-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
