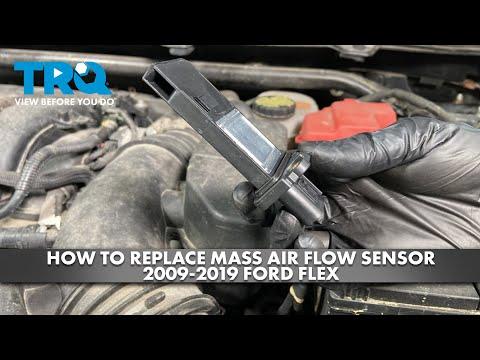

🔧 Flex - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your engine so the computer can add the right amount of fuel. If it’s failing, you may get a check engine light, rough idle, hesitation, or poor fuel economy. Replacing it is usually a quick job on your Flex because it’s mounted in the air intake tube near the air box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before unplugging sensors.
• ⚠️ Let the engine cool so you don’t burn your hands on hot parts.
• ⚠️ Avoid touching the MAF sensing element (the tiny wire/film inside). It’s fragile.
• ⚠️ Battery disconnect is not strictly required, but recommended to prevent accidental shorts and to help reset learned fuel trims.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 8mm wrench
• Torx T20 screwdriver
• 7mm socket
• 1/4" drive ratchet
• 1/4" drive 3" extension
• Small flat-blade screwdriver
• Torque wrench (inch-pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included with sensor) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air box and intake tube (large black plastic tube going to the engine).
• If disconnecting the battery: use an 8mm wrench to remove the negative (–) battery cable and keep it from touching the terminal for 10 minutes.
• Tip: Take a quick photo of the connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the sensor mounted in the intake tube/air box outlet, usually held in with 2 small screws and an electrical connector.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a small flat-blade screwdriver to gently lift the locking tab while pulling.
• Tip: Pull on the connector body, not the wires.

Step 3: Remove the MAF mounting screws

• Remove the two fasteners holding the MAF to the housing:
• Use a Torx T20 screwdriver (common setup), or use a 7mm socket with a 1/4" drive ratchet and 3" extension (some variants).
• Set the screws aside somewhere safe.

Step 4: Remove the MAF sensor

• Carefully pull the sensor straight out of the housing.
• Do not twist hard or pry on the plastic housing.
• Check whether the old O-ring/seal came out with the sensor. If it stayed behind, remove it gently by hand.

Step 5: Install the new MAF sensor

• Make sure the new sensor matches the old one and is oriented the same way.
• If your new sensor includes an O-ring, confirm it’s seated and not pinched.
• Slide the new sensor straight into place until fully seated.

Step 6: Reinstall and tighten the screws

• Start both screws by hand first to avoid cross-threading.
• Use a Torx T20 screwdriver or 7mm socket to snug them down evenly.
• Torque to 2-3 Nm (18-27 in-lbs).
• Tip: Inch-pound torque is very light—don’t over-tighten.

Step 7: Reconnect the electrical connector

• Push the connector on until it clicks/locks.
• Gently tug to confirm it’s secure.

Step 8: Reconnect the battery (if disconnected)

• Reconnect the negative (–) battery cable using an 8mm wrench.
• Snug the terminal so it doesn’t rotate on the post.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. The idle may be slightly different at first while the computer relearns.
• Check that the check engine light is off. If it stays on, you may need the code cleared after repair (common if the light was on before).
• Take a short test drive (10–15 minutes) with mixed city speeds and gentle acceleration.
• Recheck that the connector is fully seated and the intake area is secure (no loose parts).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
