🔧 Civic - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the Civic can deliver the right amount of fuel. If it’s failing or contaminated, you can get rough idle, hesitation, poor MPG, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF and cool; keep hands away from the radiator fan.
• ⚠️ Do not touch the MAF sensing element (the tiny wire/film inside); it’s very fragile.
• ⚠️ Only use MAF cleaner—brake cleaner/carb cleaner can damage the sensor.
• ⚠️ Battery disconnect is not strictly required, but it’s safer to disconnect the negative terminal to prevent accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Small flat-blade screwdriver
• Needle-nose pliers
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Mass air flow sensor cleaner spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in neutral, and set the parking brake.
• Open the hood and locate the air box and intake tube (the MAF sensor is mounted in the intake tube right after the air box).
• If disconnecting the battery: use a 10mm socket to remove the negative (-) terminal and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Find the MAF sensor and unplug it

• Locate the electrical connector on the MAF sensor body.
• Press the connector lock tab (use a small flat-blade screwdriver gently if it’s stubborn) and pull the connector straight off.
• Don’t pull on the wires.

Step 2: Remove the MAF sensor screws

• Remove the two retaining screws using a Phillips #2 screwdriver or Torx T20 screwdriver (Honda uses one of these depending on the sensor/fasteners installed).
• Set the screws aside on a shop towel so they don’t get lost.

Step 3: Pull the MAF sensor out of the intake tube

• Gently twist and pull the sensor straight out by the plastic housing (not the tip).
• If it feels stuck, use a tiny bit of rocking motion—do not pry against the sensor tip.
• Remove the old O-ring/seal if it stayed behind on the sensor or in the intake tube.

Step 4: (Optional but recommended) Clean the intake opening

• Wipe the sealing area with a shop towel so the new O-ring seats cleanly.
• If there’s dirt in the opening, remove it carefully—don’t let debris fall into the intake tube.

Step 5: Install the new MAF sensor

• Lightly install the new O-ring/seal onto the new sensor (or into the bore, depending on design).
• Insert the sensor straight into the intake tube, making sure it’s fully seated and aligned with the screw holes.
• Install and tighten the screws using a Phillips #2 screwdriver or Torx T20 screwdriver.
• Torque to 3.9 Nm (35 in-lbs)

Step 6: Reconnect the electrical connector (and battery if disconnected)

• Push the connector onto the MAF sensor until it clicks.
• If you disconnected the battery, reinstall the negative terminal using a 10mm socket and tighten it snug.

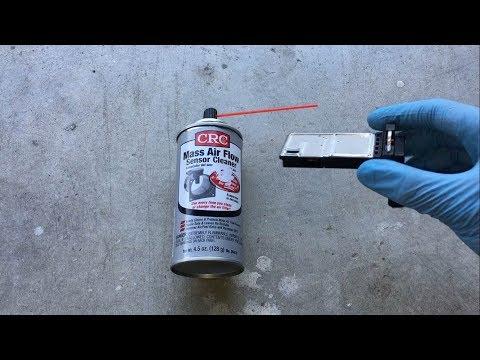

Step 7: If you’re cleaning instead of replacing (quick method)

• With the sensor removed, spray the sensing area with MAF sensor cleaner spray (do not wipe it).
• Let it air-dry completely for 10–15 minutes before reinstalling.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. It should idle smoothly.
• Take a short test drive and confirm there’s no hesitation on light acceleration.
• If the check engine light was on, it may clear after a few drive cycles; if it stays on, a code scan may be needed to confirm no other issues (vacuum leak, intake boot crack, etc.).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $100-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
