🔧 Enclave - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your Enclave’s engine so the computer can add the right amount of fuel. Replacing it is usually straightforward because it sits in the air intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake.
• ⚠️ Turn ignition OFF and keep the key/fob away from the vehicle so it can’t wake up systems.
• ⚠️ Don’t touch the sensing element inside the MAF (it’s delicate).
• ⚠️ Battery disconnect is recommended: remove the negative cable to prevent accidental shorts and reduce the chance of setting extra codes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension 3"
• Torx T20 bit
• Flathead screwdriver (small)
• 7mm socket
• Inch-pound torque wrench 20-200 in-lb
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal (if not included) - Qty: 1
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and identify the air filter box and the large intake tube running toward the engine.
• Disconnect the battery negative cable: use a 10mm socket to loosen the negative terminal and move it aside so it can’t spring back. Negative terminal is the “-” post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

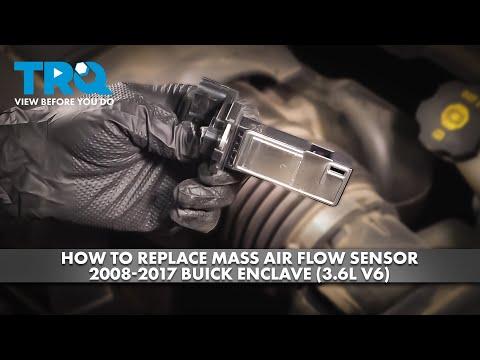

Step 1: Locate the MAF sensor

• Use a flashlight to find the MAF sensor on the intake tube near the air filter box (it will have an electrical connector and usually 2 small screws).

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab (use a flathead screwdriver (small) only if needed) and pull the connector straight off.
• Pull on the connector body, not the wires.

Step 3: Loosen the intake tube clamp (if it blocks access)

• If the sensor screws are hard to reach, loosen the intake tube clamp using a 7mm socket (or a flathead screwdriver (small) depending on clamp style).
• Gently reposition the tube for access—don’t crack or crease it.
• When reinstalling, tighten the clamp: Torque to 5 Nm (44 in-lb).

Step 4: Remove the MAF sensor

• Remove the mounting screws using a Torx T20 bit with a 1/4" drive ratchet and 1/4" drive extension 3".
• Pull the sensor straight out. If it feels stuck, wiggle gently—don’t pry on the plastic.

Step 5: Install the new MAF sensor

• Compare old vs new: connector shape and mounting should match.
• If there’s an O-ring/seal, make sure it’s in place and not pinched.
• Slide the new sensor in straight and fully seated.
• Install the screws using the Torx T20 bit.
• Tighten the MAF screws: Torque to 3 Nm (27 in-lb).

Step 6: Reconnect everything

• Reconnect the intake tube if you moved it and tighten the clamp using a 7mm socket: Torque to 5 Nm (44 in-lb).
• Add a tiny dab of dielectric grease to the connector seal (not the pins), then plug the connector back in until it clicks.

Step 7: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Tighten securely (snug, do not overtighten) and ensure it doesn’t rotate on the post.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. It may idle slightly differently at first while it relearns.
• Check that the intake tube is fully seated and clamps are tight (no hissing/whistling).
• If you had a Check Engine Light for MAF-related codes, clear codes with a scan tool if available; otherwise, it may clear on its own after a few drive cycles if the issue is fixed.
• Test drive 10-15 minutes and verify no warning lights return.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $140-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
