🔧 Terrain - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. When it fails or gets contaminated, you can get rough idle, hesitation, poor MPG, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF and cool; keep hands clear of the cooling fan.
• ⚠️ Turn the key off and remove it before unplugging sensors.
• ⚠️ If you disconnect the battery, you may lose radio presets.
• ⚠️ Do not touch the sensing elements inside the MAF; they’re delicate.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" ratchet
• 6" extension
• 7mm socket
• Torx T20 security bit (specialty)
• Inch-pound torque wrench (specialty)
• Small flat-blade screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Electrical contact grease (dielectric grease) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the ignition off and wait 2 minutes so modules go to sleep.
• If you want the safest approach, disconnect the negative battery cable using a 10mm socket.
• A torque wrench tightens bolts to a set force.
• A security Torx bit has a hole in the tip.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open access to the intake duct

• Open the hood and locate the air intake duct between the air box and the throttle body.
• If needed for room, loosen the intake duct clamp(s) using a 7mm socket and 1/4" ratchet.
• Gently reposition the duct for access (don’t force it).

Step 2: Disconnect the MAF electrical connector

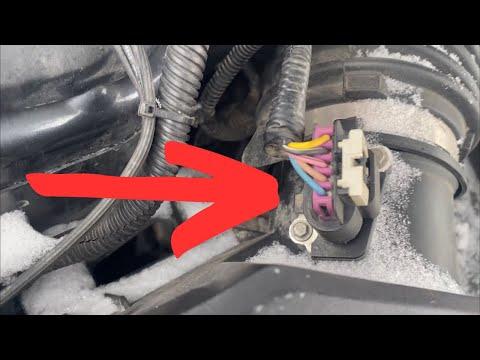

• Find the MAF sensor on the intake duct (it has a wiring plug).
• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a small flat-blade screwdriver to help lift the lock gently (don’t pry hard).

Step 3: Remove the MAF sensor

• Remove the MAF mounting screws using a Torx T20 security bit (specialty), 1/4" ratchet, and 6" extension.
• Pull the MAF sensor straight out of the duct.
• Remove the old O-ring/seal if it stayed behind.
• Don’t touch the sensor element.

Step 4: Install the new MAF sensor

• Lightly seat the new MAF sensor O-ring/seal on the sensor.
• Slide the sensor into the duct the same direction as the old one (match the screw holes).
• Install and snug the screws by hand first.
• Tighten with an inch-pound torque wrench (specialty): Torque to 2 N·m (18 lb-in).

Step 5: Reconnect everything

• Reconnect the electrical connector until it clicks.
• If you loosened intake clamps, tighten them using a 7mm socket: Torque to 3 N·m (27 lb-in).
• If you disconnected the battery, reconnect the negative cable using a 10mm socket: Torque to 17 N·m (13 ft-lbs).
• Optional: apply a tiny amount of dielectric grease to the connector seal area (not on the metal pins).

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. Listen for air leaks (hissing) around the intake duct.
• If the check engine light was on, it may clear after a few drive cycles; a scan tool can clear codes immediately.
• Do a short test drive: light throttle, then moderate acceleration. Confirm no hesitation or surging.
• If it runs worse, recheck connector and clamps.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $70-$200 (parts only)

You Save: $110-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
