🔧 Impala - Mass Air Flow (MAF) Sensor Replacement

On your Impala, the MAF sensor measures how much air enters the engine so the computer can deliver the right fuel. Replacing it usually means removing the sensor from the air intake tube and installing the new one, then verifying the engine runs smoothly with no warning light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool down before working near the intake and radiator area.
• ⚠️ Turn ignition OFF and remove the key; keep it away from the car.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to avoid setting extra codes.
• ⚠️ Don’t touch the MAF sensing element (the tiny wire/film inside); it’s very delicate.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 bit
• Small flat-blade screwdriver
• Trim clip tool
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1

---

📋 Before You Begin

• Park on a level surface, shift to Park, and set the parking brake.
• Open the hood and locate the air filter box and the air intake tube going to the throttle body.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Take a quick photo of connectors first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

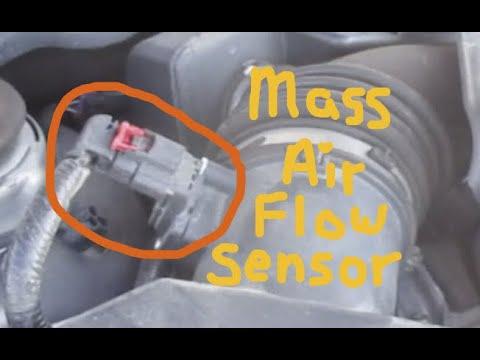

Step 1: Locate the MAF sensor

• Find the sensor installed in the air intake duct just after the air filter box (it has an electrical connector).
• If there’s an engine cover blocking access, remove it by pulling straight up with your hands or using a trim clip tool if clips are tight.

Step 2: Unplug the electrical connector

• Press the connector lock tab by hand; if needed, gently help it with a small flat-blade screwdriver.
• Pull the connector straight off (don’t pull on the wires).

Step 3: Remove the MAF sensor from the intake

• Remove the MAF mounting screws using a Torx T20 bit with a 1/4" drive ratchet and 3" extension.
• Carefully wiggle and lift the sensor straight out.
• Remove the old O-ring seal if it stays in the housing.
• Don’t drop anything into the intake tube.

Step 4: Install the new MAF sensor

• Lightly seat the new O-ring seal onto the new sensor (or into the housing, matching how the old one sat).
• Insert the new sensor straight in, making sure it sits flush and is oriented the same way as the original.
• Install the screws by hand first to avoid cross-threading, then tighten with the Torx T20 bit.
• Torque to 2.5 Nm (22 in-lbs) using a torque wrench (inch-pound).

Step 5: Reconnect everything

• Plug the connector back in until it clicks.
• Reinstall any engine cover you removed.
• Reconnect the negative battery cable using the 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes; it should idle smoothly.
• Test drive for 10 minutes with a few gentle accelerations.
• If the check engine light stays on, a scan tool may be needed to clear codes and confirm the fix.
• Recheck the intake area for any loose clamps, unplugged connectors, or air leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $120-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
