🔧 Passat - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your engine so the computer can deliver the right fuel. If it’s failing or contaminated, you can get rough running, poor fuel economy, or a check engine light. On your Passat, it’s mounted in the intake duct near the air filter box and is usually a quick swap.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake and radiator fans.
• ⚠️ Turn ignition fully OFF and remove the key/fob from the car area so the engine can’t be accidentally started.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorting and to protect sensors.
• ⚠️ Don’t touch the MAF sensing element (the tiny wire/film inside); it’s very delicate.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Torx T20 screwdriver
• Torx T25 screwdriver
• Flathead screwdriver (small)
• Trim clip removal tool
• Needle-nose pliers
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included) - Qty: 1
• Intake hose clamp (if existing clamp is damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the hood supported securely.
• Disconnect the battery negative terminal: use a 10mm socket to loosen the clamp and move the cable aside so it can’t spring back.
• Take a quick photo of the connector and duct routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

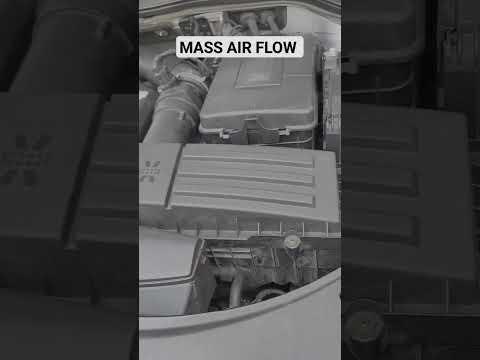

Step 1: Locate the MAF sensor on the intake duct

• Use a flashlight to find the air filter box and the large intake tube/duct leaving it toward the engine.
• The MAF sensor is a small module inserted into that duct, usually held by two Torx screws and has an electrical connector.

Step 2: Unplug the MAF electrical connector

• Use a flathead screwdriver (small) to gently lift the locking tab if it’s tight (don’t pry hard).
• Pull the connector straight off the sensor.
• If it won’t release, wiggle—don’t yank wires.

Step 3: Create working room (if needed)

• If the duct is hard to access, loosen the intake clamp using a flathead screwdriver (small) or Torx T25 screwdriver (clamp style varies).
• Move the duct slightly for access—don’t crack the plastic.
• If you encounter push clips on a snorkel/cover, remove them using a trim clip removal tool.

Step 4: Remove the MAF sensor from the duct

• Remove the two retaining screws using a Torx T20 screwdriver (some versions use Torx T25 screwdriver).
• Pull the MAF sensor straight out of the duct.
• Check for an O-ring/seal on the sensor. The O-ring is a rubber ring that seals air leaks.

Step 5: Install the new MAF sensor

• Lightly seat the new MAF sensor O-ring/seal if separate (no oil or grease unless the part instructions specifically say so).
• Insert the new MAF sensor into the duct in the same orientation as the old one (match the connector direction).
• Install and tighten the screws using a Torx T20 screwdriver.
• Torque to 3 Nm (27 in-lbs)

Step 6: Re-secure the intake duct and reconnect the connector

• Tighten the intake clamp using a flathead screwdriver (small) or Torx T25 screwdriver.
• Reconnect the MAF connector until it clicks into place.
• Reinstall any snorkel/cover clips using a trim clip removal tool as needed.

Step 7: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Snug the terminal so it doesn’t rotate by hand.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. Listen for hissing (an air leak) around the duct and clamp.
• If the check engine light was on, it may clear after a few drive cycles. If it stays on, a code scan is recommended.
• Take a short test drive and confirm smooth acceleration and no warning lights.
• If idle is high, recheck duct clamps and seating.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $110-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
