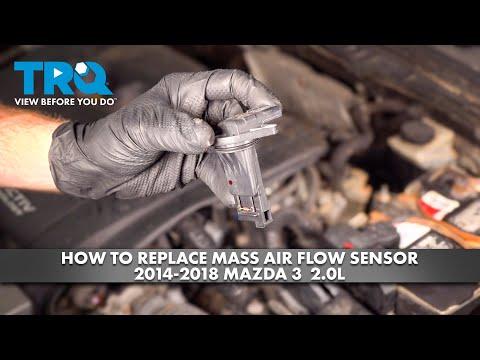

🔧 Mazda3 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your Mazda3 so the engine computer can add the right amount of fuel. A failing or contaminated MAF can cause rough idle, hesitation, poor mileage, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine off and cool to avoid burns.
• ⚠️ Keep dirt out of the intake tube—don’t drop screws into the air duct.
• ⚠️ If you disconnect the battery, you may lose radio presets and the idle may need a short relearn.
• ⚠️ Never touch the MAF sensing element (tiny wire/film inside)—it’s very fragile.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" drive ratchet
• 3" extension (1/4")
• Torx T20 bit
• Torx T20 security bit (specialty)
• Flathead screwdriver (small)
• Torque wrench (in-lb, 20–200 in-lb range)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included with sensor) - Qty: 1
• Dielectric grease (optional) - Qty: 1
• Engine air filter (optional, if due) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air box and intake tube. The MAF is mounted on the intake tube near the air box outlet.
• If you want maximum safety against accidental shorts, disconnect the negative battery cable using an 8mm socket and ratchet. Torque to 5 N·m (44 in-lb) when reinstalling.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the MAF location

• Find the sensor with an electrical connector plugged into it on the intake tube right after the air box.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a flathead screwdriver (small) gently on the tab—do not pry on the wires.
• Tip: Push in first, then press tab.

Step 3: Remove the MAF mounting screws

• Use a Torx T20 bit to remove the two screws holding the MAF to the intake tube.
• If the screws have a pin in the center (tamper-resistant), use a Torx T20 security bit (specialty) instead.
• Set the screws aside where they can’t fall into the engine bay.

Step 4: Remove the MAF sensor from the intake tube

• Pull the sensor straight out.
• If it feels stuck, wiggle gently—don’t twist hard.
• Remove the old O-ring/seal if it stayed in the intake tube.

Step 5: Install the new MAF sensor

• Make sure the new sensor’s O-ring is installed and lightly seated (no pinches).
• Slide the sensor straight into the opening, fully seated and aligned.
• Install the screws by hand first (to avoid cross-threading), then tighten with a Torx T20 bit.
• Torque to 2 N·m (18 in-lb).

Step 6: Reconnect the electrical connector

• Push the connector on until it clicks.
• If using, apply a tiny amount of dielectric grease to the connector seal (not on metal pins).

Step 7: Reconnect the battery (if disconnected)

• Install the negative battery cable using an 8mm socket and ratchet.
• Torque to 5 N·m (44 in-lb).

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. The idle may hunt briefly while it relearns.
• If you had a check-engine light, clear codes with a scan tool, then recheck for returning codes after a short drive.
• Take a 10–15 minute test drive with a mix of light throttle and steady cruising. Confirm no hesitation or stalling.
• Recheck the connector is fully latched and that no screws/tools were left near the air box.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $110-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
