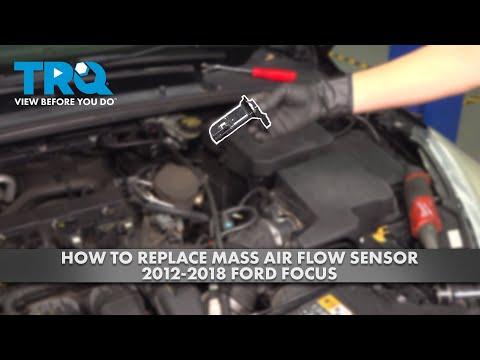

🔧 Focus - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your Focus so the engine computer can add the right amount of fuel. If it’s failing, you may get a check-engine light, rough idle, hesitation, or poor fuel economy.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake and radiator fan area.
• ⚠️ Turn ignition OFF and remove the key before unplugging sensors.
• ⚠️ Disconnect the negative battery cable if you’re worried about setting codes or accidental shorts.
• ⚠️ Never touch the sensor’s sensing element (it’s fragile and can be ruined).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 bit
• Small flathead screwdriver
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1
• Electrical contact cleaner - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air intake tube between the air box and the throttle body.
• Find the MAF sensor: it’s mounted in the intake tube/air box outlet and has an electrical connector.
• Dielectric grease is a non-conductive grease that helps keep moisture out of electrical connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Power down and access the MAF sensor

• Turn ignition OFF and remove the key.
• Put on nitrile gloves and safety glasses.
• If needed for access, use a 7mm socket with a 1/4" drive ratchet and 3" extension to loosen the intake hose clamp near the sensor area.
• Take a photo before unplugging anything.

Step 2: Unplug the MAF electrical connector

• Use a small flathead screwdriver to gently help release the connector lock if it’s stuck.
• Pull the connector straight off (do not pull on the wires).
• Spray a small amount of electrical contact cleaner into the connector and let it air-dry.

Step 3: Remove the MAF sensor

• A Torx bit is a star-shaped driver; use a Torx T20 bit with a 1/4" drive ratchet to remove the MAF mounting screws.
• Carefully pull the MAF sensor straight out of the housing.
• Remove the old MAF sensor O-ring seal if it stayed in the housing.
• Do not touch the sensing element.

Step 4: Install the new MAF sensor

• Install the new MAF sensor O-ring seal (lightly seat it so it doesn’t pinch).
• Slide the new MAF sensor into place, keeping it straight so the O-ring doesn’t roll.
• Start the screws by hand, then tighten with the Torx T20 bit.
• Torque to 2-3 Nm (18-27 in-lbs) using an inch-pound torque wrench.

Step 5: Reconnect everything

• Add a tiny dab of dielectric grease around the connector seal (not on the metal pins).
• Push the connector on until it clicks.
• If you loosened the intake clamp, tighten it using a 7mm socket and 1/4" drive ratchet (snug, not crushing the plastic).

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. Listen for air leaks (hissing) around the intake tube.
• If the check-engine light was on, clear codes with a scan tool if available; otherwise it may turn off after a few drive cycles if the fix is successful.
• Test drive gently for 10 minutes and confirm no hesitation or stalling.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $120-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
