🔧 X1 - Mass Air Flow Sensor Replacement

On your X1, the “MAF sensor” (often called the air mass meter) sits in the intake tube near the air filter box and measures incoming air so the engine can add the right amount of fuel. Replacing it is mostly a careful remove-and-reinstall job, but you must avoid contaminating the new sensor and make sure all clamps are sealed.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Your X1 is equipped with an air mass meter in the intake tube; some setups use different airflow/pressure sensors, but the replacement process below matches the typical air-box intake MAF.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot turbo/intake parts can burn you.
• ⚠️ Turn ignition OFF and keep the key away from the vehicle so the engine can’t wake up.
• ⚠️ Disconnect the negative battery terminal if you’re worried about triggering faults or shorting the connector.
• ⚠️ Do not touch the sensing element or spray cleaner on a new sensor; skin oil and solvents can ruin it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torx T20 driver
• Torx T25 driver
• Flat trim tool
• 7mm nut driver
• Small pick tool
• Torque wrench (Nm) 2-20 Nm range
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor / air mass meter - Qty: 1
• MAF sensor O-ring seal - Qty: 1
• Intake tube clamp - Qty: 1 (only if yours is damaged)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• If disconnecting battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back. Torque to 5 Nm (44 in-lbs) on reattach.
• Put on nitrile gloves and safety glasses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grip the cover and pull straight up to release the rubber grommets.
• If any fasteners are present, remove them using a 10mm socket or Torx T25 driver (varies by cover style).
• Tip: Pull evenly at the corners.

Step 2: Locate the MAF sensor on the intake tube

• Follow the air filter box outlet toward the turbo inlet; the MAF is the small sensor body with an electrical connector mounted in the intake tube.
• Use a flashlight if needed (phone light works) to see the screws and connector.

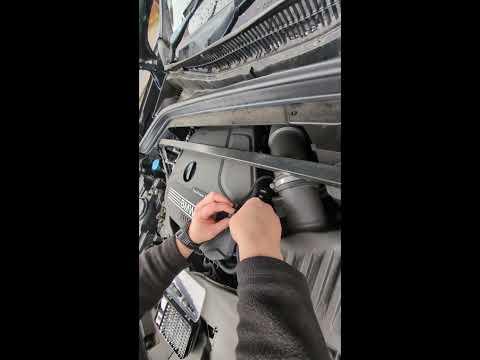

Step 3: Unplug the MAF electrical connector

• Use a flat trim tool to gently lift the locking tab (the lock is the little safety catch that prevents accidental unplugging).
• Press the release and pull the connector straight off by hand.
• Tip: Pull the plug, not the wires.

Step 4: Loosen the intake tube clamp(s) for access

• Use a 7mm nut driver to loosen the hose clamp(s) on the intake tube near the sensor area.
• If there’s a clip or retainer, release it carefully using a flat trim tool.
• Move the intake tube slightly to create working room; don’t force it.

Step 5: Remove the old MAF sensor

• Remove the MAF mounting screws using a Torx T20 driver (some are Torx T25).
• Pull the sensor straight out of the intake tube.
• If it feels stuck, use a small pick tool to gently help the O-ring seal release (don’t gouge the plastic tube).

Step 6: Install the new MAF sensor

• Compare the new sensor to the old one (same shape/connector and airflow direction marking).
• Install a new MAF sensor O-ring seal if supplied; make sure it sits flat and isn’t twisted.
• Slide the sensor straight into the intake tube until fully seated.
• Install screws using a Torx T20 driver, then tighten evenly. Torque to 3 Nm (27 in-lbs).
• Tip: Tighten “snug,” not “gorilla tight.”

Step 7: Reassemble the intake tube and reconnect wiring

• Reposition the intake tube and tighten the clamp(s) using a 7mm nut driver. Torque to 3-4 Nm (27-35 in-lbs).
• Reconnect the electrical connector until it clicks, then re-engage the lock.
• Reinstall the engine cover by pressing it down into the grommets.

Step 8: Reconnect battery (if disconnected)

• Reconnect the negative terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; listen for hissing that could indicate an air leak at the intake clamps.
• If you had a check engine light, use a scan tool to clear codes and confirm they do not return. A scan tool reads/clears fault codes.
• Take a short test drive and verify normal throttle response and no warning lights.
• Recheck intake clamp tightness after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $130-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
