🔧 A6 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your A6’s engine so the computer can add the right amount of fuel. A failing MAF can cause rough idle, hesitation, poor mileage, or a check-engine light. Replacing it is usually straightforward, but you must be gentle with the sensor and connector.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from hot turbo/engine parts.
• ⚠️ Turn ignition OFF and keep the key away from the car while unplugging sensors.
• ⚠️ Do not touch the sensor element inside the MAF; it’s very delicate.
• ⚠️ Battery disconnect is usually not required, but if you’re prone to shorting tools near terminals, disconnect the negative cable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flathead screwdriver
• Torx T20 screwdriver
• Torx T25 screwdriver
• 10mm socket
• 1/4" ratchet
• 1/4" extension (3")
• Trim clip remover
• Small pick tool
• Flashlight
• Torque wrench (2-20 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included with sensor) - Qty: 1
• Dielectric grease (for electrical connector) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool for at least 20-30 minutes.
• Have your flashlight ready; the MAF sits on the intake air tube/airbox area near the front-right side of the engine bay.
• Tip: Take a quick photo before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grip the engine cover with both hands and pull straight upward to pop it off the rubber grommets.
• If your cover uses fasteners, remove them with a Torx T25 screwdriver or 10mm socket.

Step 2: Locate the MAF sensor

• Use a flashlight to find the sensor mounted in the intake tube/airbox outlet. It will have an electrical connector and is held in by small Torx screws or a clamp-style housing depending on version.
• Tip: The MAF is before the turbo inlet.

Step 3: Unplug the MAF electrical connector

• Press the connector lock tab by hand and pull the connector straight back.
• If it’s stuck, use a small pick tool to gently lift the lock (do not pry hard on the wires).
• Apply a tiny amount of dielectric grease to the seal area (not on the metal pins).

Step 4: Remove the intake tube/air duct as needed for access

• If access is tight, loosen the hose clamp(s) using a flathead screwdriver.
• Release any clips with a trim clip remover.
• Carefully wiggle the duct off and set it aside where it won’t fall or crack.
• Tip: Don’t force plastic ducts; they crack easily.

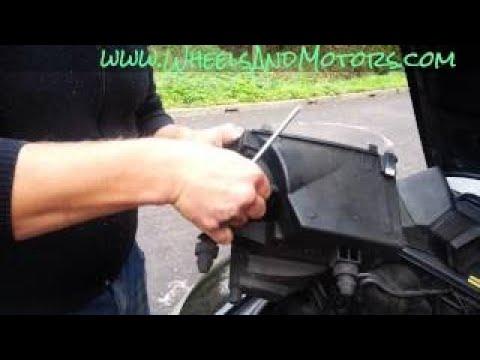

Step 5: Remove the MAF sensor

• Remove the mounting screws using a Torx T20 screwdriver (common) or Torx T25 screwdriver (some versions).
• Pull the sensor straight out. If it has an O-ring, it may feel “stuck” at first.
• Do not drop it or bump the tip on the housing.

Step 6: Install the new MAF sensor

• Compare the old and new sensor to make sure the connector and mounting holes match.
• Install a new MAF sensor O-ring/seal if your sensor uses one.
• Slide the new sensor in straight and fully seated (do not twist hard).
• Install the screws and tighten evenly using a Torx T20 screwdriver.
• If using a torque wrench, Torque to 3 Nm (27 in-lbs).

Step 7: Reinstall the intake tube/air duct

• Reinstall the duct and make sure it is fully seated on all couplers.
• Tighten hose clamps with a flathead screwdriver.
• If you removed any fasteners, reinstall them using a 10mm socket.
• If using a torque wrench on 10mm hardware, Torque to 8 Nm (71 in-lbs).

Step 8: Plug the connector back in and reinstall the engine cover

• Push the connector on until it clicks (a “click” means the lock engaged).
• Reinstall the engine cover by pressing it down onto the grommets.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. Listen for hissing (air leak) around the intake tube.
• If the check-engine light was on, it may turn off after a few drive cycles. A scan tool can clear codes immediately.
• Take a short test drive and check for hesitation, surging, or a returning warning light.
• Tip: Intake air leaks can mimic a bad MAF.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
