🔧 Sportage - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air your engine is breathing so the computer can add the correct amount of fuel. If it fails or gets contaminated, you can get rough idle, hesitation, poor MPG, or a check-engine light. Replacing it is usually quick because it sits in the air intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake and radiator fan.
• ⚠️ Keep keys out of the vehicle so the cooling fan can’t turn on unexpectedly.
• ⚠️ Do not touch the MAF sensing element (the tiny wire/film inside); skin oil can ruin it.
• ⚠️ If you disconnect the battery, you may lose radio presets and the idle may need a short relearn.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Flathead screwdriver (medium)
• Phillips screwdriver #2
• Torx T20 security bit
• Torque wrench (inch-pound)
• Trim clip tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring / seal (if not included) - Qty: 1
• MAF sensor safe cleaner (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose jewelry or sleeves.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and keep it from touching the post.
• Assumption: Your Sportage uses a MAF sensor mounted in the intake tube by the air box; fasteners may be Phillips or security Torx.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

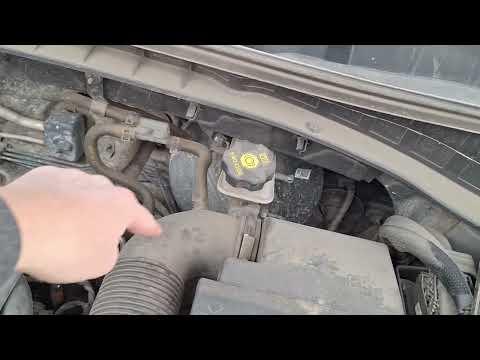

Step 1: Locate the MAF sensor

• Find the air filter box and the large black intake tube going toward the engine.
• Look for a small sensor housing in that tube with an electrical connector—this is the MAF sensor.

Step 2: Unplug the electrical connector

• Press the connector lock tab, then pull the connector straight off.
• If it’s stuck, use a flathead screwdriver (medium) very gently to help the tab—do not pry hard on the sensor.
• Tip: Wiggle while pulling, don’t yank.

Step 3: Make room (if needed)

• If an engine cover or snorkel blocks access, remove it using a 10mm socket and 1/4" drive ratchet or a trim clip tool for push-clips.
• If the intake tube clamp blocks the sensor, loosen the clamp using a flathead screwdriver (medium) (or the same tool that fits the clamp screw) and shift the tube slightly for access.

Step 4: Remove the MAF sensor fasteners

• Remove the two mounting screws using either a Phillips screwdriver #2 or a Torx T20 security bit (use the one that fits snugly).
• Set the screws aside where they can’t fall into the engine bay.

Step 5: Remove the old MAF sensor

• Pull the sensor straight out of the intake tube.
• If it feels stuck, gently twist it while pulling—don’t force it.
• Check for an O-ring/seal; remove it if it stayed behind.

Step 6: Install the new MAF sensor

• Lightly seat the new O-ring/seal (if separate) and make sure it isn’t pinched.
• Slide the new sensor in the same orientation as the old one (match the bolt holes and airflow direction marking if present).
• Install and snug the screws by hand first to avoid cross-threading.
• Tighten the screws evenly using your screwdriver/bit, then finish with a torque wrench (inch-pound): Torque to 27–35 in-lb (3–4 N·m).
• Tip: Small screws strip easily—go gentle.

Step 7: Reconnect intake tube and plug in the connector

• If you loosened the intake clamp, re-seat the tube and tighten the clamp using a flathead screwdriver (medium) until snug (do not crush the plastic).
• Push the electrical connector on until it clicks.

Step 8: Reinstall any removed covers/snorkels

• Reinstall parts removed for access using a 10mm socket and 1/4" drive ratchet or the trim clip tool.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. The idle may hunt briefly while the computer relearns.
• Check that the check-engine light stays off (or doesn’t return after a short drive).
• Do a short test drive (5–10 minutes). Confirm smooth acceleration and no hesitation.
• If the check-engine light was on before, clearing codes with a scan tool can speed up confirmation, but it should also clear on its own after successful drive cycles.
• Recheck that the intake tube is fully seated and there are no air leaks (hissing sound).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $110-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
