🔧 Tucson - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor on your Tucson measures how much air enters the engine so the computer can add the correct amount of fuel. If it’s faulty or contaminated, you can get rough idle, hesitation, poor MPG, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• Work on a cool engine to avoid burns.
• Keep dirt out of the intake tube and air box while it’s open.
• Do not touch the sensing element inside the MAF (it’s fragile).
• Recommended: disconnect the negative battery cable to prevent accidental shorts and to help the ECU relearn after replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Flathead screwdriver
• 8mm socket
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Trim clip tool
• Small pick tool
• Torque wrench (in-lb or low Nm)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included with sensor) - Qty: 1
• MAF sensor-safe cleaner (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and locate the intake tube between the air box and the engine.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and set it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

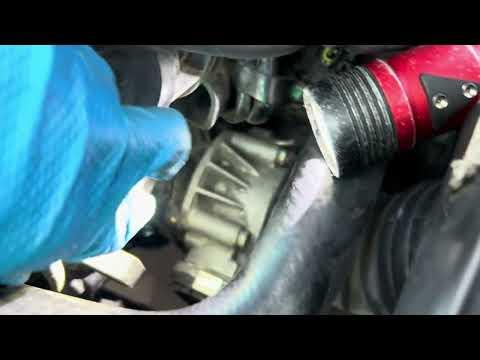

Step 1: Locate the MAF sensor

• Find the air filter box and the plastic/rubber intake tube coming off it.
• The MAF sensor is mounted in the intake tube or right at the air box outlet and has an electrical connector plugged into it.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab by hand; if it’s stubborn, gently assist with a small pick tool.
• Pull straight back on the connector (don’t pull on the wires).
• Wiggle slightly; don’t force it.

Step 3: Make room (if needed) by loosening the intake tube

• If access is tight, loosen the intake hose clamp(s) using a 8mm socket or flathead screwdriver (some clamps use an 8mm screw head).
• If there are plastic push-clips holding an intake snorkel/cover, remove them using a trim clip tool.
• Move the intake tube slightly without cracking it.

Step 4: Remove the MAF sensor

• Remove the MAF mounting screws using a Phillips #2 screwdriver or a Torx T20 screwdriver (Hyundai commonly uses one of these styles).
• Lift the sensor straight out. If it sticks, gently twist while pulling up.
• Inspect the sealing area and remove the old O-ring/seal if it stayed behind.

Step 5: Install the new MAF sensor

• Make sure the new sensor’s seal/O-ring is installed and seated evenly.
• Install the sensor in the same orientation as the old one (arrow/flow marking should point toward the engine if present).
• Start both screws by hand first to avoid cross-threading.
• Tighten the MAF screws using a torque wrench (in-lb or low Nm): Torque to 2.0-3.0 Nm (18-27 in-lbs).
• Overtightening can crack the sensor housing.

Step 6: Reassemble the intake tube and reconnect wiring

• Reposition the intake tube and tighten hose clamps using a 8mm socket or flathead screwdriver until snug.
• Reinstall any clips using the trim clip tool.
• Plug in the MAF connector until it clicks.

Step 7: Reconnect the battery (if disconnected)

• Reconnect the negative battery terminal using a 10mm socket.
• Tighten the terminal: Torque to 5-6 Nm (44-53 in-lbs).

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes. The idle may fluctuate briefly while the ECU relearns.
• Check that there are no air leaks (hissing) around the intake tube and clamps.
• If the check-engine light was on, clear codes with a scan tool and road-test. If the light returns, you may have an intake leak or a wiring/connector issue.
• Road-test: light acceleration first, then normal driving. Confirm no hesitation and normal throttle response.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$420 (parts + labor)

DIY Cost: $70-$260 (parts only)

You Save: $110-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
