🔧 Pilot - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your engine so the computer can add the right amount of fuel. If it’s failing or contaminated, you can get rough running, poor MPG, or a check-engine light. Replacing it is usually quick because it’s mounted in the intake tube near the air box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine so you don’t burn your hands on hot parts.
• ⚠️ Do not touch the MAF sensing element (the tiny wire/film inside); skin oil can damage it.
• ⚠️ Keep dirt out of the intake tube; anything that falls in can be pulled into the engine.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal can prevent accidental fault codes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4")
• Torx T20 driver
• Phillips #2 screwdriver
• Trim clip removal tool
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses
• Clean shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal (if not included with sensor) - Qty: 1

---

📋 Before You Begin

• Park the Pilot on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air box and intake tube (the large plastic/rubber tube going to the engine).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back. Negative terminal is the “-” post.
• Assumption: your Pilot uses a 2-screw, plug-in MAF mounted in the intake tube near the air box (common on this model).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the MAF sensor

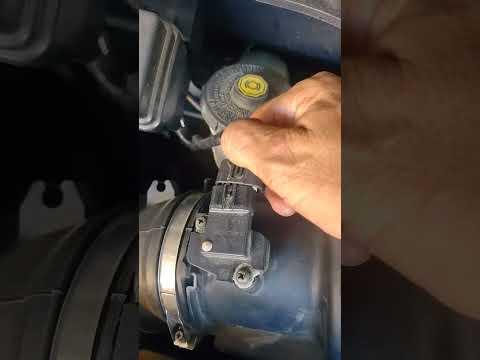

• Locate the MAF sensor on the intake tube near the air box (it has an electrical connector and is held by two small screws).
• If an engine cover or small duct is in your way, remove fasteners using a trim clip removal tool and/or 10mm socket.

Step 2: Unplug the electrical connector

• Press the connector lock tab with your thumb and pull the connector straight off.
• If it’s stubborn, wiggle gently—do not pull on the wires.

Step 3: Remove the MAF mounting screws

• Use a Torx T20 driver to remove the two MAF screws.
• If your screws are Phillips instead of Torx, use a Phillips #2 screwdriver.
• Set the screws aside on a clean towel so you don’t lose them.

Step 4: Remove the old MAF sensor

• Pull the sensor straight out of the intake tube.
• Check for an O-ring/seal on the sensor. If it stayed in the intake tube, remove it with a clean finger or shop towel.
• Wipe the mounting area with a clean shop towel. Do not let debris fall into the tube.

Step 5: Install the new MAF sensor

• Install a new O-ring/seal if your sensor uses one. A light wipe of clean engine oil on the O-ring can help it seat without pinching.
• Insert the new sensor straight in until it sits flush. Don’t force it—recheck alignment.

Step 6: Reinstall and tighten the MAF screws

• Start both screws by hand to avoid cross-threading.
• Tighten using a Torx T20 driver (or Phillips #2 screwdriver).
• If using a torque wrench: Torque to 4 N·m (35 in-lbs).

Step 7: Plug the connector back in

• Push the connector on until it clicks.
• Gently tug it to confirm it’s locked.

Step 8: Reinstall any covers/ducting

• Reinstall anything you removed using the 10mm socket and/or trim clip removal tool.
• Double-check the intake tube clamps are snug (use an 8mm socket if you loosened any clamps).

---

✅ After Repair

• Reconnect the battery (if disconnected) using a 10mm socket and make sure the terminal is tight.
• Start the engine and let it idle for 2–3 minutes. The idle may settle as the computer relearns.
• Check that the check-engine light stays off. If it’s on, the connector may not be fully seated.
• If a code was stored, clear it with an OBD2 scan tool, or it may clear on its own after a few drive cycles if the problem is fixed.
• Take a short test drive and confirm normal acceleration and no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $90-$300 (parts only)

You Save: $90-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
