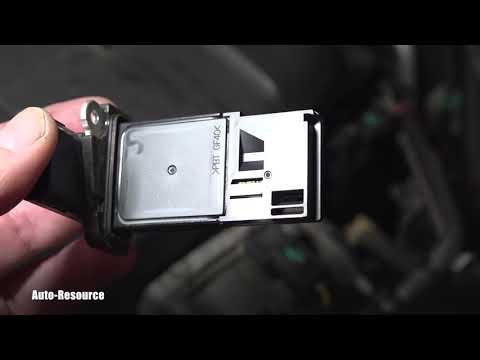

🔧 Pilot - Mass Air Flow (MAF) Sensor Replacement

Your Pilot’s MAF sensor measures how much air is entering the engine so the computer can add the right amount of fuel. A dirty or failed MAF can cause rough idle, hesitation, poor fuel economy, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the air intake.
• ⚠️ Turn ignition OFF and keep the key/fob away from the vehicle.
• ⚠️ Avoid touching the MAF sensing element (it’s fragile).
• ⚠️ Battery disconnect is recommended if you’re prone to bumping connectors: remove negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" 1/4" extension
• Phillips screwdriver #2
• Pick tool
• Torque wrench (in-lb)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/gasket (if not included) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to Park.
• Open the hood and make sure the engine is cool to the touch.
• If disconnecting the battery: use 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Look at the air intake tube near the air filter box; the MAF is the small sensor with an electrical connector plugged into it.
• The MAF sits in the intake stream.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the plug straight off.
• If the tab is stubborn, use a pick tool to gently lift the lock while pulling.
• Don’t pull on the wires.

Step 3: Remove the MAF sensor fasteners

• Use a Phillips screwdriver #2 to remove the MAF mounting screws.
• If your Pilot uses small bolts instead of screws, use a 10mm socket with 1/4" ratchet and 6" 1/4" extension.

Step 4: Remove the MAF sensor from the housing

• Pull the sensor straight out of the intake housing.
• Remove the old O-ring/gasket if it stayed behind.
• Do not touch the sensor tip.

Step 5: Install the new MAF sensor

• Install the new O-ring/gasket (if separate) and lightly seat it by hand.
• Slide the new MAF sensor into place in the same orientation as the old one.
• Install the screws/bolts by hand first to avoid cross-threading.
• Tighten evenly using a Phillips screwdriver #2 or 10mm socket.
• Torque to 18-26 in-lb (2-3 N·m) using a torque wrench (in-lb).

Step 6: Reconnect the connector and recheck your work

• Push the electrical connector on until it clicks.
• If using it, apply a tiny amount of dielectric grease to the connector seal (not the pins).
• Make sure the intake tube and air box are fully seated and not loose.

Step 7: Reconnect the battery (if disconnected)

• Reconnect the negative terminal using a 10mm socket.
• Snug it firmly (do not overtighten).

---

✅ After Repair

• Start the engine and see if idle is smooth and stable.
• Take a short 10-minute drive with mixed city speeds and light acceleration.
• If the check-engine light was on, use a scan tool to clear codes and confirm none return.
• If you disconnected the battery, your Pilot may need a short relearn period for idle; let it idle for a few minutes with all accessories off.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $100-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
