🔧 RDX - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. If it’s failing, your RDX may run rough, hesitate, or set a check-engine light. This job is quick because the sensor sits in the air intake tube near the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Disconnect the battery negative cable to prevent a check-engine light or accidental short.
• ⚠️ Do not touch the sensor element (the delicate wire/film inside); skin oil can damage it.
• ⚠️ If you use cleaner, only use MAF sensor cleaner—brake/carb cleaner can ruin the sensor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Phillips #2 screwdriver
• Torx T20 bit
• Trim clip removal tool
• Small pick tool
• Flashlight
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/gasket - Qty: 1
• MAF sensor cleaner (aerosol) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose items around the air intake area.
• Disconnect the battery negative terminal: use a 10mm socket to loosen the clamp and move the cable aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

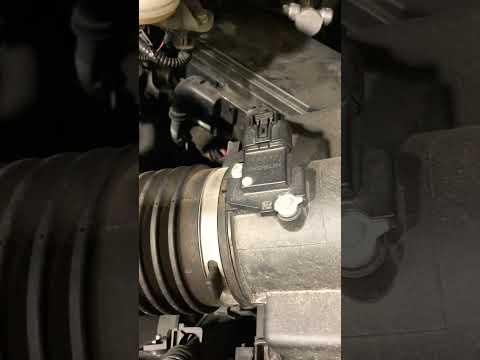

Step 1: Locate the MAF sensor

• Use a flashlight and find the air filter box and the large black intake tube coming off it.
• The MAF sensor is the small module plugged into the intake tube, with an electrical connector.

Step 2: Remove any engine cover/ducting in the way (if equipped)

• Remove plastic clips using a trim clip removal tool.
• Loosen screws with a Phillips #2 screwdriver if present.
• Keep clips in a cup so they don’t vanish.

Step 3: Unplug the MAF sensor connector

• Press the connector lock tab by hand.
• If the tab is stubborn, gently help it with a small pick tool (do not force it).
• Pull the connector straight off.

Step 4: Remove the MAF sensor from the intake tube

• Remove the mounting screws using a Torx T20 bit and 1/4" drive ratchet (use a 3" extension (1/4" drive) if needed).
• Carefully wiggle and pull the sensor straight out.
• Place it on a clean shop towel.

Step 5: Inspect/replace the O-ring or gasket

• Check the old MAF sensor O-ring/gasket for flattening, cracks, or tearing.
• Replace it with the new one and make sure it sits evenly (not twisted).

Step 6: (Optional) Clean the intake opening

• Use a clean shop towel to wipe dirt off the intake tube opening.
• Do not drop anything into the intake tube.

Step 7: Install the new MAF sensor

• Slide the sensor into the intake tube opening in the same orientation as the old one.
• Install and snug the screws using a Torx T20 bit and 1/4" drive ratchet.
• Torque to 3.5 Nm (31 in-lbs)

Step 8: Plug the connector back in

• Push the connector on until it clicks.
• Gently tug to confirm it’s locked.

Step 9: Reinstall any covers/ducting you removed

• Reinstall clips with your fingers and a trim clip removal tool as needed.
• Tighten screws using a Phillips #2 screwdriver.

Step 10: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket.
• Torque to 5 Nm (44 in-lbs)

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes.
• Listen for air leaks (hissing) around the air box/intake tube area.
• If the check-engine light was on, it may take a few drive cycles to clear; a scan tool can clear it immediately.
• Take a 10-minute test drive with gentle acceleration first, then normal driving.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
